10″ HIGH OUTPUT ELECTRIC FAN CURVED BLADE, PULLER, 840 CFM
10″ HIGH OUTPUT ELECTRIC FAN CURVED BLADE, PULLER, 840 CFM
$239.19
Description

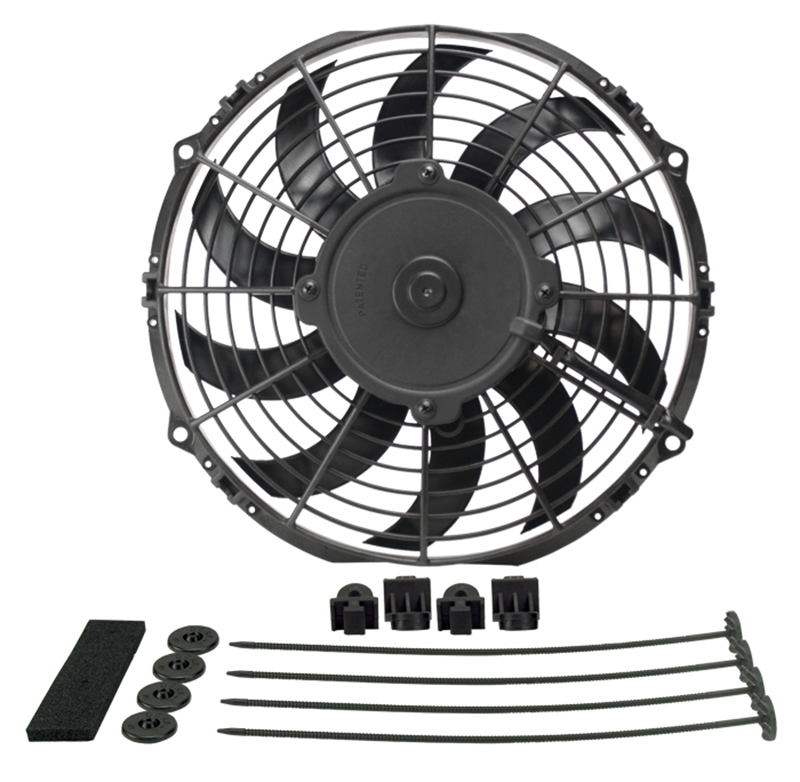

A 10″ Diameter version of our high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 2 1/16″ at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 timeslonger than normal electric fan motors, this puller fan isdesigned to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.
Features
Primary cooling fan eliminatesfuel and horsepower robbing belt driven fans
10 thin curved blades allow ultralow profile design for limitedspace applications
Sealed waterproof/dustproof IP68 certified motors
Ultraquiet S-blade designs
Designed for maximum performance at high static pressure loads for moreeffective cooling
Longlasting, sealed IP68 certifiedwaterproof & dustproof motor
825 CFM
Includes mounting kit and illustrated installation instructions
Puller only (engine side)
Specifications
CFM fan: 825
Amp draw: 9.2
Width: 10-9/16″
Height: 11-1/8″
Depth: 1-1/8″
Overall Depth: 2-1/16″
Mounting: 9-11/16″ x 5-13/16″
Additional information
| Weight | 1.8600 kg |
|---|---|
| Dimensions | 41.60 × 33.30 × 7.60 cm |
| Category list | Cooling, Cooling, Insulation & Air Conditioning, Electric Fans |
| Brand | Derale |
