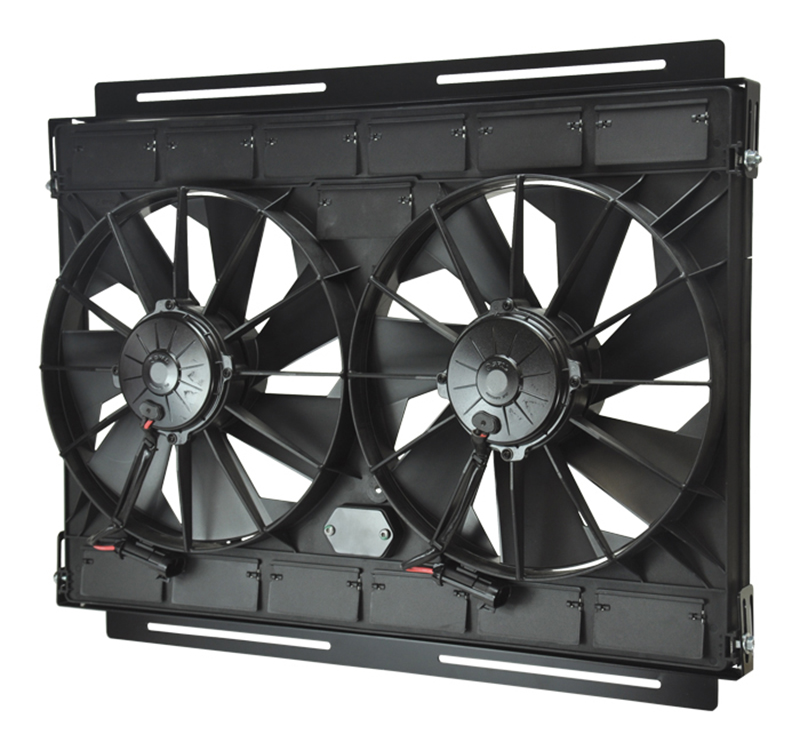

12″ DUAL FAN & SHROUD KIT 4000 CFM, 654 x 445 x 105mm

Description

This high performance
primary cooling fan kit
combines two high output 300
watt motors and an OE-quality
injection molded fan shroud to
produce one serious dual
electric fan setup. Features
13 air pressure relief vents.
Designed for puller
applications, It’s perfect for
perfect for muscle cars,
street rods and heavy duty
trucks, this combination
produces 4,000 CFM while each
fan draws 24.8 amps. Includes
adjustable metal mounting
system.

Specifications

• CFM fan
  1/2: 2000/2000
• Amp
  draw fan 1/2:
  24.8/24.8
• Width:
  25-3/4″
• Mounting Bolts
  add 1″ more to width if
  used
• Height:
  17-1/2″
• Height with
  mounting Hardware: 20-1/2″ Up
  To 21-5/8″
• Depth:
  2-3/4″
• Overall Depth:
  4-1/8″
• Adjustable
  Mounting Height: 19-1/8″ min.
  to 20-1/2
  Max.
• Adjustable
  Mounting Width: 4-1/2 to
  19-3/4

Features

• Designed for primary
  cooling
• Injection
  molded shroud
• High
  output 300 watt
  motors
• 4000
  CFM
• Multiple mounting
  options
• 13 air
  pressure relief
  vents
• Puller (engine
  side) applications
  only
• Fan Kit includes
  complete adjustable mounting
  bracket kit and optional
  mounting feet
  hardware
