15 GAL CELL & A1000 FUEL PUMP B/LESS CONTROLL VARIABLE SPEED

Description

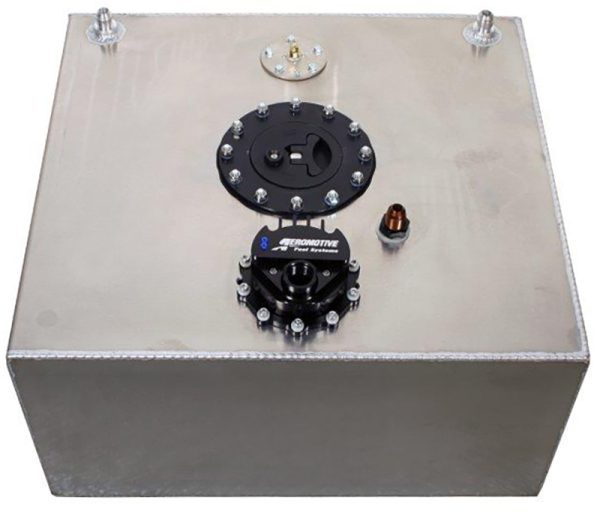

15-gallon Street/Strip Fuel
Cell with Stealth A1000
Brushless Pump, aircraft
filler cap, ORB-10 outlet,
AN-08 baffled return and dual,
roll-over protected AN-08
vents. This is the same fuel
cell design, but with larger
capacity of 15-gal vs 6-gal
used in the Ford Cobra Jet,
Chevy COPO Camaro and many of
the MOPAR Drag Pack
cars.

• Baffled
  design keeps fuel at the pump
  inlet
• Fluted pickup
  with integrated 100-m
  prefilter
• Fuel Cell
  Dimensions: 20″w x 18″l x
  10″h
• Integral 0-90 ohm
  fuel level sending
  unit
• The A1000
  performance you expect and
  more:
• Fuel
  Injected
  Engines:
• up
  to 1300 FWHP – naturally
  aspirated
• up to 1000
  FWHP – Forced air
  induction
•
  Carbureted
  Engines:
• up
  to 1500 FWHP – naturally
  aspirated
• up to 1200
  FWHP – forced air
  induction
• E85
  Compatible pump, reduce max
  FWHP by 30%
• Lighter
  than the traditional A1000
  pump.
• Reduced current
  draw at higher, EFI
  pressures.
• Extended
  service life in methanol and
  ethanol.
• Integral,
  external brushless controller
  for clean installation, cooler
  fuel and enhanced
  reliability.
• Quieter
  than the traditional A1000
  pump.
• ORB-10 outlet
  port.
• Requires
  straight 12-VDC to 16-VDC
  power supply.
• Not
  compatible with pulse
  modulated systems or fuel pump
  speed controllers.
• EFI
  rated flow of 700 lbs./hr. @
  45 psi, 13.5
  volts
• Carb rated flow
  of 900 lbs./hr. @ 9 psi, 13.5
  volts

Aeromotive’s
True Variable Speed Controller
offers the advantages of
built-in pump speed control
via a dedicated 0-5V analog DC
input signal. The Controller
capitalizes on our existing
brushless technology by
reducing fuel flow during low
engine demand and decreasing
an already low current draw,
therefore minimizing both
motor heat the introduction of
environmental via reduced fuel
recycling.
