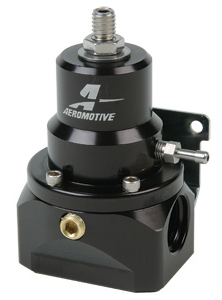

2 PORT BY-PASS REGULATOR CARB 2-20PSI. -10ORB IN & OUT
2 PORT BY-PASS REGULATOR CARB 2-20PSI. -10ORB IN & OUT
$616.49
Description
Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carburetted blow-through applications. The A2000 Bypass Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump.
Features:
Adjustable from 2-20 PSI.
Bypass design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line)
Fuel pressure rises on a 1:1 ratio when referencing boost.
ORB-10 inlet and return ports.
P/N 13212 provides (1) ORB-10 outlet port.
P/N 13212 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17248 or 17250.
Additional information
| Weight | 0.6600 kg |
|---|---|
| Dimensions | 14.00 × 7.00 × 14.00 cm |
| Category list | Carburettor Regulators, Fuel Pressure Regulators, Fuel System |
| Brand | Aeromotive |
