2 x4 HI-RAM MANIFOLD LS3-L92 w/4500, SIDE OR IN-LINE
2 x4 HI-RAM MANIFOLD LS3-L92 w/4500, SIDE OR IN-LINE
$1,727.62
Description

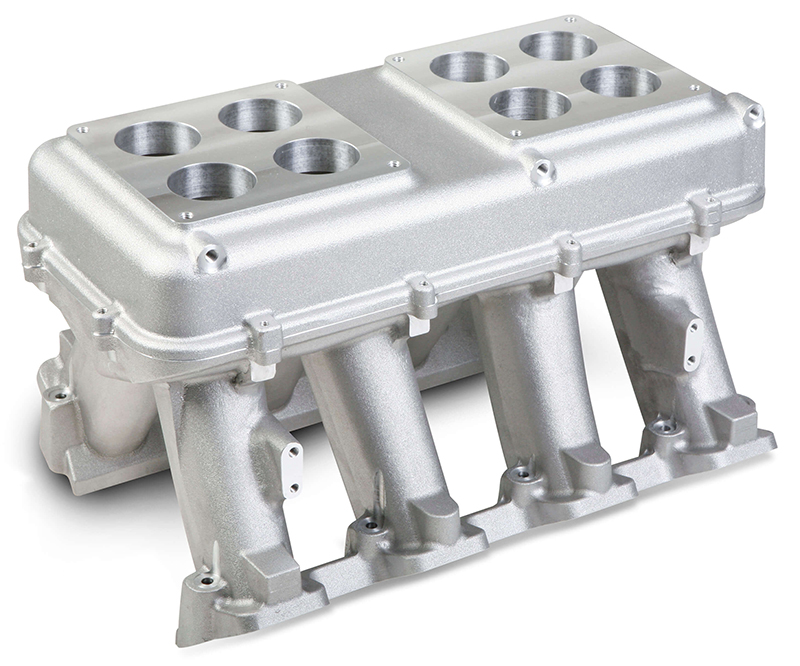

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifoldis introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinderheads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
The base is designed to be modular in configuration to accept a widerange of carburetted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Runner lengthand the tapered cross-section designed to perform well for awide range of engine configurations
Cast aluminum construction.
Intendedfor use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max powerat 7000-8000+RPM.
Features:
Plenum Top Gasket Type – 3/32″ Round O-ring Cord
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
PortSize – 2.49″ Height x 1.21″Wide
Runner Length – 6.50″, As-Cast Runner Cross-Sectional Area – Tapered4.25 in² to 2.77 in²
Base Plenum Top Mounting Flange Height – 8.42″ to the lifter valley cover flange on engine block.
Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08†to the lifter valleycover flange on engine block.
Additional information
| Weight | 10.0200 kg |
|---|---|
| Dimensions | 61.00 × 21.50 × 32.00 cm |
| Category list | |
| Brand | Holley |
