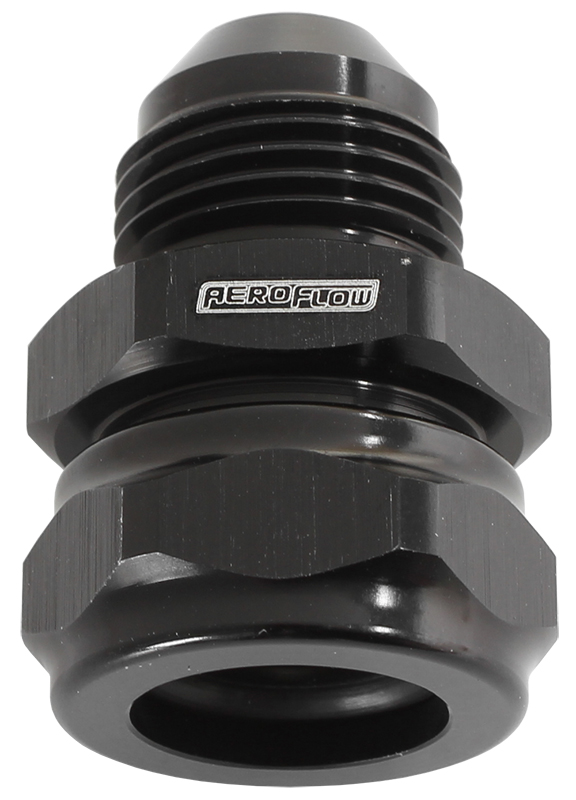

3/4″ BARB TO -10AN ADAPTER BLACK CONVERT MALE BARB TO AN
3/4″ BARB TO -10AN ADAPTER BLACK CONVERT MALE BARB TO AN
$30.48
Description
No welding… no clamps… nohassle with this unique O-ringdesign. This revolutionary fitting allows you to convert any barb, plastic or metal, over to the ever-popular rangeof AN style fittings in our inventory. Sizes range from 5/16″ to 3/4″ Barb. Which accommodates a variety of electric oil and fuel pumps.
Instructions:
(For detailed instructions with pictures, click the link above.)
1. Undo the fitting andlay it out. Then slide the base of the fitting over the barb.
2. Lube up the O-ring thoroughly with an appropriate lubricant. Carefully not to tear, slide the O-ring over the barb’sedges. The O-ring must seat against the lowest barb edge.
3. Whilst holding the bottom half of the fittingto ensure the O-ring does not move from its seated position.Slide the top half over the barb and tighten.
Note:
Do not over tighten! Only a snug fit is required till the fitting does not slide up or down.
Tip:
Lubricating the O-ring before assembly will make it easier to slide over the barb without tearing.
Additional information
| Weight | 0.1200 kg |
|---|---|
| Dimensions | 15.00 × 11.50 × 0.80 cm |
| Category list | Barb Fittings, Fittings, Fuel Pump Fittings and Adapters, Fuel Pumps, Fuel System, Hose and Fittings |
| Brand | Aeroflow |
