351C 4.020″ PISTON 11.7cc DISH3.850″ ST 6.000″ ROD 1.250″ CH
351C 4.020″ PISTON 11.7cc DISH3.850″ ST 6.000″ ROD 1.250″ CH
$1,722.23
Description

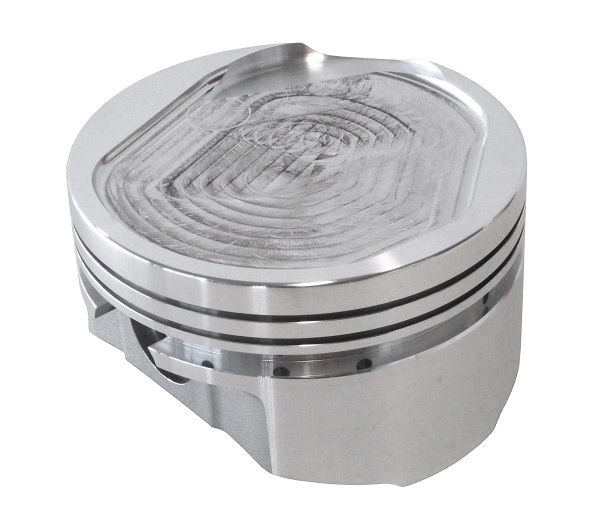

This piston set is ideal for oval track to street/stripapplications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling.Piston set accepts 1/16, 1/16,3/16 rings.
Includes:
Spiro Lock: 927-042-CS
Straight Wall Pin: 927-2750-15-51S (130g)
Specifications:
Part #: SRP302431
CID:393
Bore: 4.020
Stroke: 3.850
Rod Length: 6.000
Compression Height: 1.250
Compression Ratio with 72cc chamber volume: 9.60
Compression Ratiowith 80cc chamber volume: 8.92
Compression Ratiowith 84cc chamber volume: 8.62
Dome Volume: -11.7cc
Gram Weight: 455
Footnote: .927 PinDiameter,
Oversize: .020
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4020-5
SRP Pistons was founded in 1997 byJE Pistons, the world’s largest manufacturer of forgedracing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
Additional information
| Weight | 6.3200 kg |
|---|---|
| Dimensions | 33.00 × 33.00 × 18.00 cm |
| Category list | |
| Brand | Srp |
