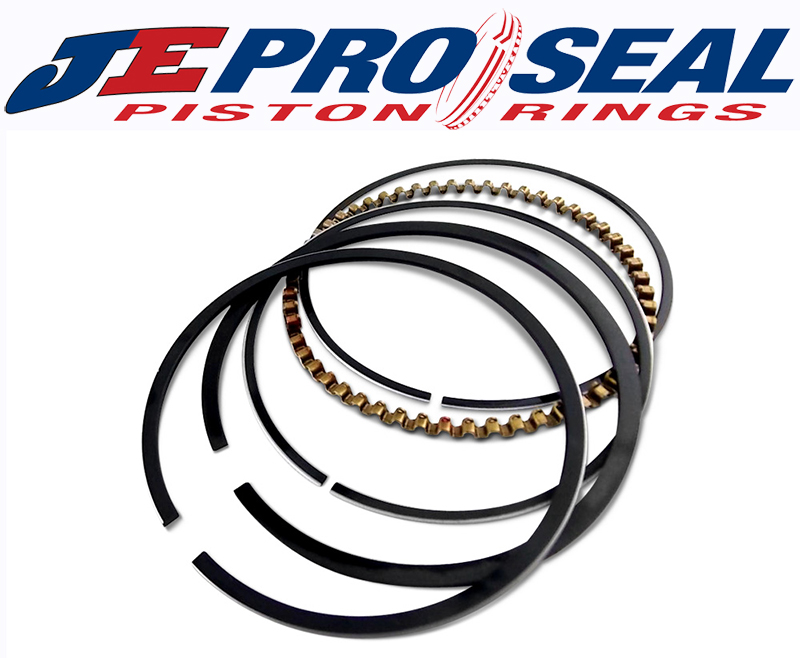

4.040″ BORE + .005″ RINGS SET 1.5MM 1.5MM 3.0MM, LOW TENSION

Description

JE Premium Race Series
rings feature the highest
quality ductile iron top ring
with the latest technology
plasma-moly inlay. Taper faced
reverse torsional second rings
or gapless seconds are
combined with either standard
or low tension oil control
rings.

Specifications

• Bore:
  4.040″ +.005″
• Top Ring
  Height: 1.5mm
• Top Ring
  Description (Material,
  Coating, Shape): Ductile Iron,
  Plasma Moly, Barrel Face, Back
  Cut, Torsional
• Second
  Ring Height:
  1.5mm
• Second Ring
  Description (Material,
  Coating, Shape): Iron,
  Phosphate, Napier, Back Cut,
  Neutral
• Oil Ring
  Height: 3.0mm
• Oil Ring
  Description (Material,
  Coating, Shape): Carbon Steel,
  Chrome, Full Seal, Flex
  Vent
