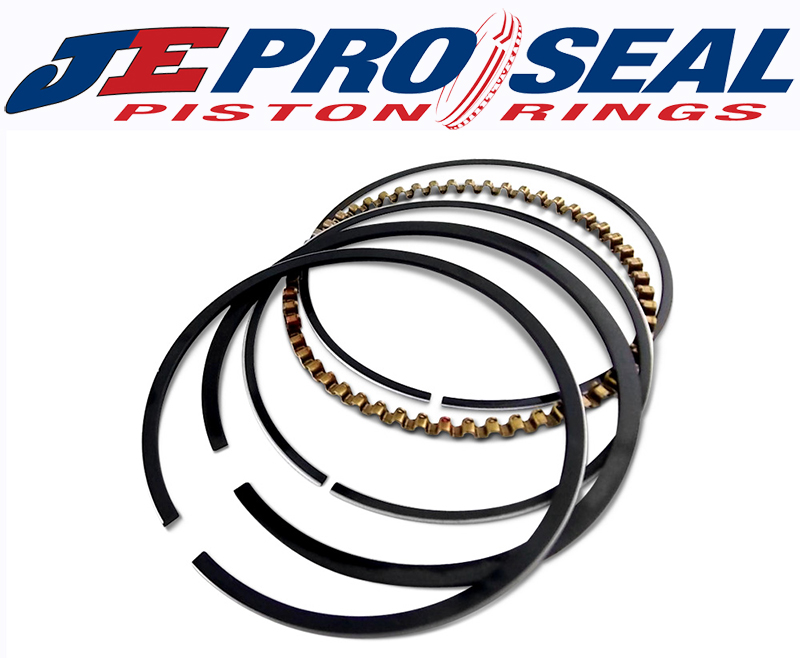

4.060″ BORE + .005″ HNS RINGS 1/16″ 1/16″ 3/16″, LOW TENSION

Description

“HNS” HARDENED
NITROUS SERIES

Specially designed for use
with turbo and nitrous
applications these HNS top
rings have 20% more tensile
strength than conventional
ductile iron top rings. They
are available in 1/16″ and
.043″ axial heights in both
standard and reduced radial
widths. D017 Dykes rings are
also available with custom
backcut sizes.

Specifications

• Bore:
  4.060″
• Top Ring
  Height: 1/16″
• Top Ring
  Description (Material,
  Coating, Shape): Hardend
  Ductile Iron, Phospate, Barrel
  Face, D-wall,
  Torsional
• Second Ring
  Height: 1/16″
• Second
  Ring Description (Material,
  Coating, Shape): Iron,
  Phosphate, Taper Face, D-wall,
  Reverse Torsional
• Oil
  Ring Height: 3/16″
• Oil
  Ring Description (Material,
  Coating, Shape): Carbon Steel,
  Chrome, Full Seal, Flex
  Vent
