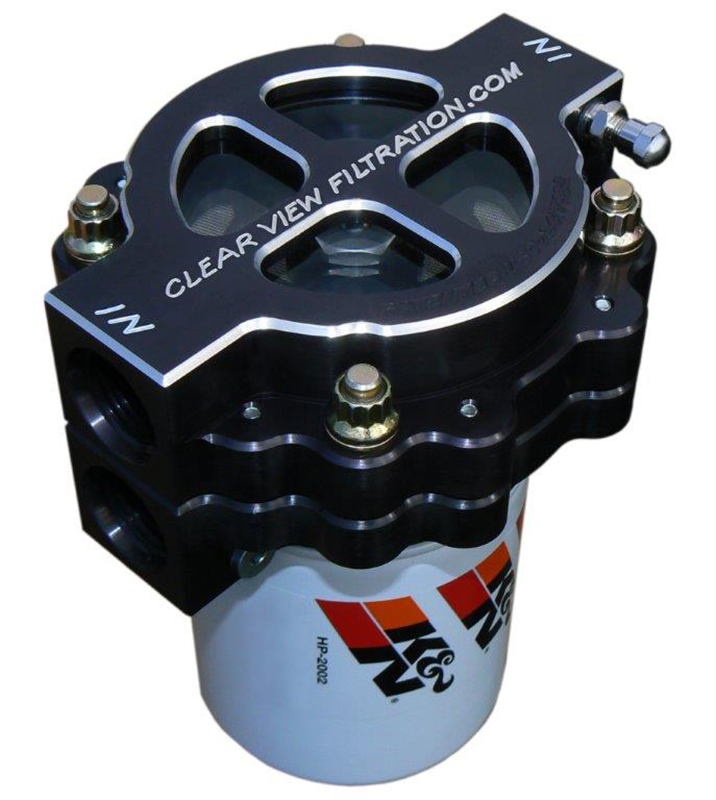

4″ SCREW ON OIL FILTER -12 115 MICRON BLACK

Description

4″ Screw-On See Through Filter Assembly with #12 Portsand 115 Micron Element, for running 50 weight or lighter oil. For use with disposable filters on the bottom of the See Through Oil Filter. Dual filtration gets all the microscopic particles out of the oil. These filters are smaller and lighter which makeit easier to mount in tight engine compartments.
Features:
Smallest Particles Filtered: depends on the disposable filter microns, varies on brand
Recommended Disposable Filter: (not included) K&N #HP-2003 or #HP-3002 or WIX #51069 or #51060
BlackOut Seriescan use Napa Gold filters
Disposable Filter Thread Size: 13/16″ – 16 TPI
Bypass Relief Valve: Yes
Inlet &Outlet Fitting:
#12 O-Ring Boss – 1 -1/16″ – 12 TPI
Operating Temp: max 220 degrees Fahrenheit
Operating Pressure: max 150 PSI
Height (without disposable filter): 3.00 in.
Width: 5.00 in.
Length: 6.00 in.
Filter Weight: 3.40 pounds
Clear View Filtration’s Patented Dual Oil Filter Assemblies arethe Best Oil Filtration SystemAvailable. This 4″ Screw-On Filter Assembly was designed for most Big and Small Block Engine combinations, includingStreet, Dirt and Marine use. This filter is the best choicefor motorsports ran on dirt and other applications where the user wants to filter microscopic and dust particlesout of the oil system. Also where space is limited and being light weight is important! Oil first flows through the see through filterwhich the element traps all the larger particles that can be viewed and inspected while the microscopic particles flowinto the disposable filter andare filtered out. The clean filtered oil flows out of the filter assembly through the outlet opening back into the engine. A shot of air empties the filter in seconds exposingthe element and filtered particles without draining or leaking any oil and without unbolting or loosening any fasteners or fittings. Filtersare remotely mounted and can work on many applications including diesels. This dual stage filter will extend the life and flow of the disposable filter and still allow visual inspection of filtered particles for engine inspection.
The 4″ Screw-On Filters have 2 Inlet and 1 Outlet Port openings that are threaded for #12 O-Ring Boss – 1-1/16-12 TPI fittings. The Inlet and Outletopenings have been machined to0.625″ or 5/8″ inside diameterso it will not restrict fluid when using #12 lines.
