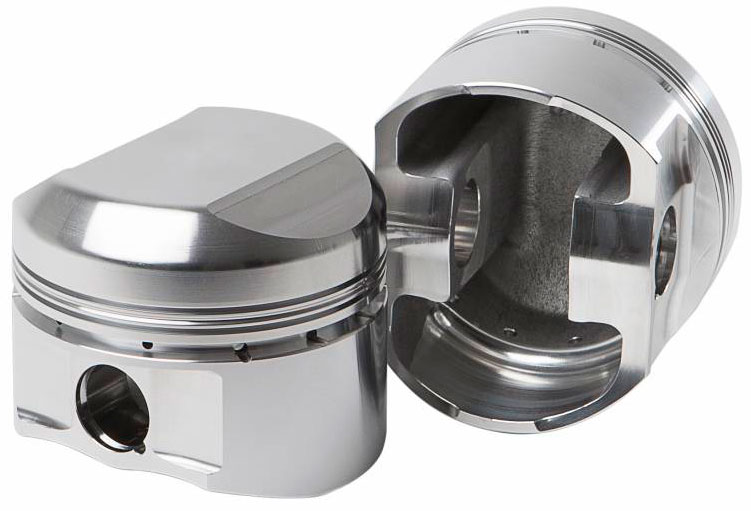

540 HEMI PISTONS, 4.500″ BORE 4.250″ STROKE, 7.100″ RODS
540 HEMI PISTONS, 4.500″ BORE 4.250″ STROKE, 7.100″ RODS
$2,899.50
Description
3D milling on piston crowns for ready to install finish
Designed to work with most oem open and closed chamber cylinder heads
Top ring down dimension: .240″
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.225″ intake and .191″ exhaust
Will work with up to a intake valve size of 2.190″ and exhaust valve size of 1.880″
Made from 4032 alloy
Additional information
| Weight | 9.0000 kg |
|---|---|
| Dimensions | 70.00 × 28.00 × 13.00 cm |
| Category list | |
| Brand | Diamond |
