-6AN BULKHEAD FITTING W/ 5/16″BARB FOR PUSH ON HOSE
-6AN BULKHEAD FITTING W/ 5/16″BARB FOR PUSH ON HOSE
$27.00
Description

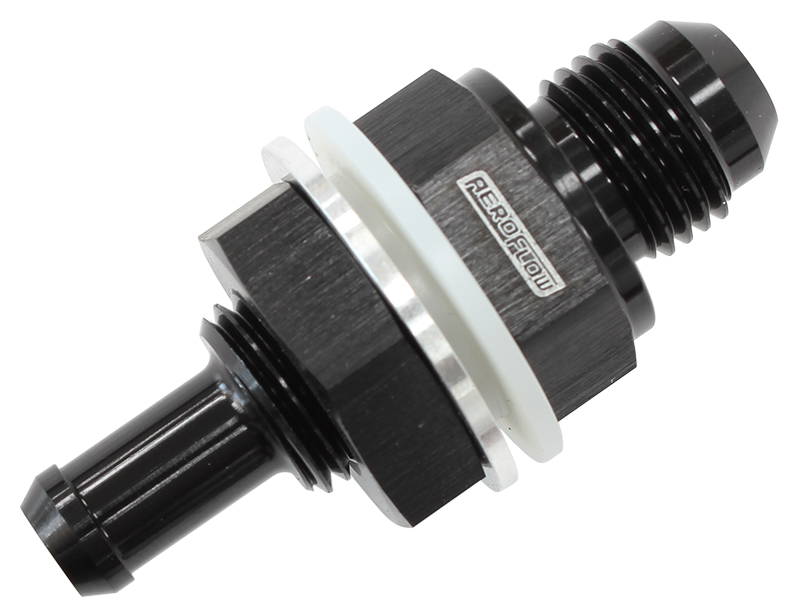

This Aeroflow Performance high flow bulkhead fitting is designed for use in fuel cells. They feature a radius on Inlet for unrestricted flow. Each bulkhead fitting includes 2 PTFE washers and a bulkhead nut. These fittings can also be used for adding a breather to a valve cover, or a drain on a fabricated tank whether it is a plastic or metal material.
• Constructed from billet aluminum.
• Designed to suit a 14.2mm (9/16”) bulkhead hole.
• Male -6AN to 8mm (5/16″) Barb
• Fits up to 6mm (1/4″) thick material
• Bulkhead nut size O.D. is 22mm
• Overall length is 55mm
Additional information
| Weight | 0.0260 kg |
|---|---|
| Dimensions | 16.00 × 9.00 × 3.00 cm |
| Category list | Fuel Cell Bulkheads and Fittings, Fuel System, Fuel Tanks and Cells |
| Brand | Aeroflow |
