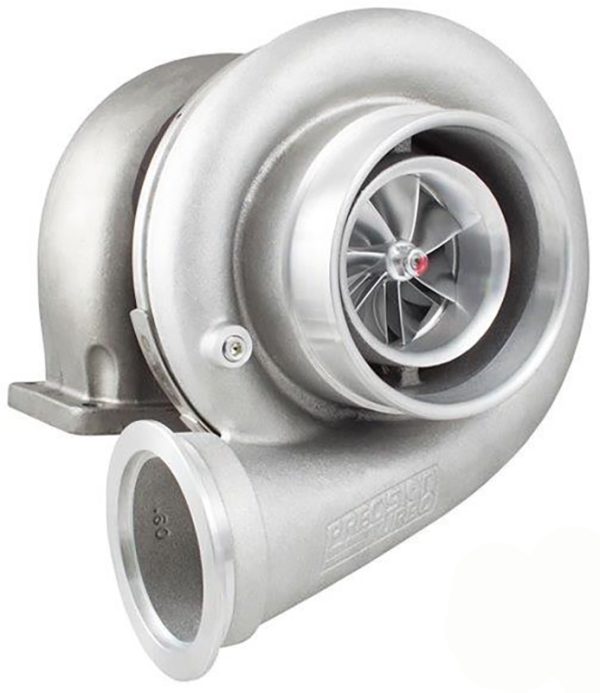

7685 GEN2 1350HP TURBOCHARGER T4 DIV INLET V-BAND 1.12 A/R

Description

The new GEN2 PT7685 CEA
turbocharger is one of the
most technologically and
aerodynamically advanced units
on the market today.
Precision’s exclusive CEA
technology offers higher
efficiency and faster
transient response for maximum
power and performance.
Featuring an all new 76mm
inducer GEN2 CEA (Competition
Engineered Aerodynamics)
CNC-machined, 2618-forged
aluminum compressor and new
85mm exducer CEA turbine
wheel, this turbo offers
unparalleled performance,
great efficiency at higher
pressure ratios, and massive
power gains over older
designs.

Purpose-built
for improved strength,
durability and longevity,
every new GEN2 PT7685 CEA
turbo will be equipped with an
air-cooled, dual ceramic ball
bearing Center Housing
Rotating Assembly (CHRA) for
faster transient response,
less turbo lag, and added
thrust capacity. Additionally,
this turbo will be equipped
with Precision’s popular
Sportsman compressor cover
which features a 5″ inlet and
4.2″ outlet and helps
alleviate potentially harmful
compressor surge.

The
GEN2 PT7685 CEA turbo comes
standard with a divided T4
turbine housing. Customers can
select from options including
1.12 A/R, or 1.28 A/R, so as
to tune the turbos performance
specifically to meet their
desired goals and intended
application usage. Rated to
support 1,350 HP, unlike
anything else on the market
today, Precision’s GEN2 CEA
wheels have proven to be
serious game-changers in the
world of turbo technology.
