9″ HD PRO ALUMINIUM CENTRE 3.89:1, 35 SPLINE TRUETRAC
9″ HD PRO ALUMINIUM CENTRE 3.89:1, 35 SPLINE TRUETRAC
$5,968.85
Description

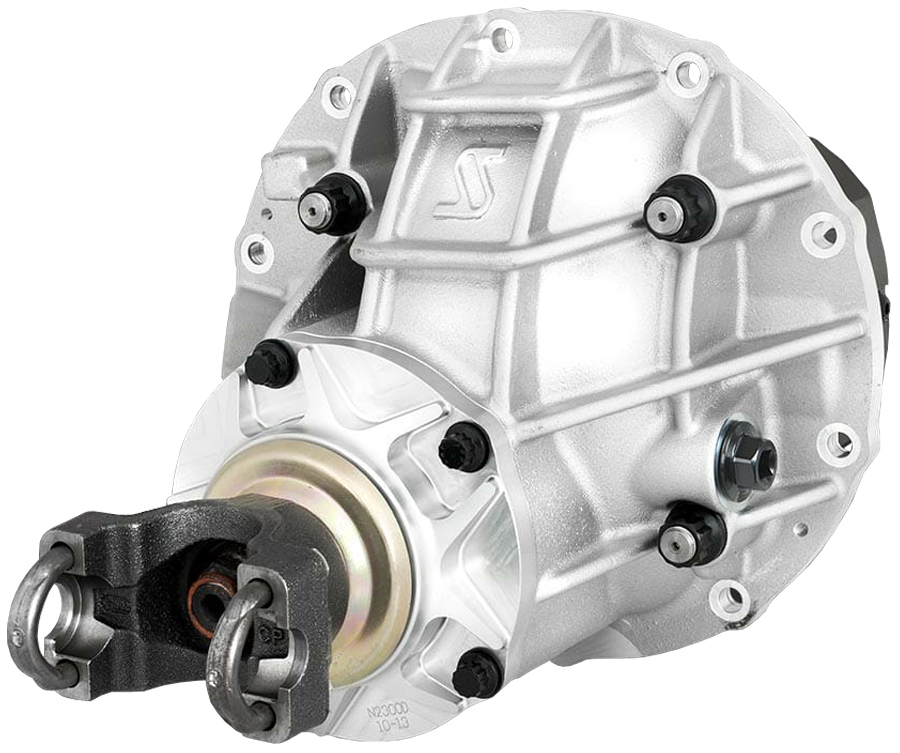

The Strange HD Pro Ford 9 inch Aluminium Third Member with differential is designed for drag race applications and for the most abusive Hi-Performance street/strip applications. As with all Strange aluminium cases, it is crafted from 206-T4 heat treated aluminium. This premium aluminium has a 12% higher yield strength and a 32% higher tensile strength compared to commonly used 356-T6 aluminium.
The billet aluminium pinion support has a unique oil channel that is machined 360° into the support to maximize oil flow to the pinion bearings as well as a large slot in the front to further boost oil circulation. The support is in contact with the bore of the case in two locations as opposed to one as found in normal cases. This additional contact area holds the pinion shaft much more securely resulting in better bearing and gear life. The tail bearing is oversized to handle more load and greater RPM than a stock tail bearing. Billet aluminium main caps encapsulate chrome-moly studs, provide the utmost support for the carrier bearings and significantly reduce ring gear deflection.
Includes:
3.250″ bore HD Pro Aluminum case for 35 spline
Billet aluminium main caps & solid steel adjuster nuts
Forged aluminium pinion support
35-Spline Eaton TrueTrac
3.89 ratio gear set
1350 chrome moly yoke
Timken bearings & races
Grade 8 ring gear bolts
Professionally sssembled
Additional information
| Weight | 32.0000 kg |
|---|---|
| Dimensions | 29.00 × 29.00 × 44.00 cm |
| Category list | |
| Brand | Strange |
