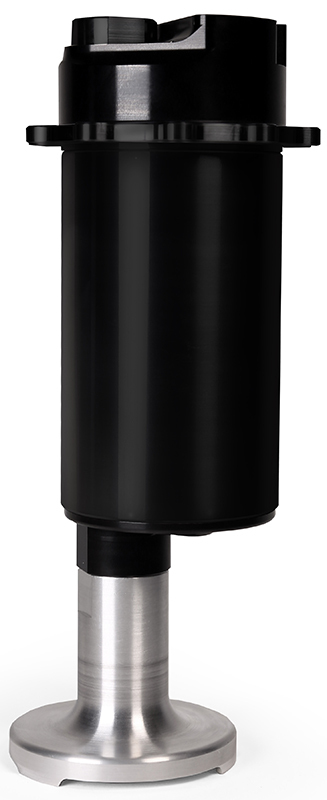

A1000 BRUSHLESS STEALTH FUEL PUMP CONTROLLER VARIABLE SPEED

Description

Aeromotive’s line of
brushless pumps are available
with two different built-in
controllers: the Standard
Configuration of Aeromotive’s
Brushless Controllers, which
provides continuous full-speed
operation, and the New True
Variable Speed Controller
(TVS), which offers the
advantages of pump speed
control vial a 0-5V analog DC
input signal. The TVS
Controller capitalizes on our
existing brushless technology
by reducing fuel flow during
low-demand and decreasing an
already low current draw,
therefore minimizing the
introduction of heat even
further.

Pump
Features:

• 700 lbs./hr. @ 45
  psi
• Fuel Cell Drop-in,
  10″ Deep
• ORB-10 outlet
  port
• Extended service
  life in methanol and
  ethanol
• roller vane
  design that reduces friction
  and improves
  efficiency
• Integral,
  external brushless controller
  for clean installation, cooler
  fuel and enhanced
  reliability

A1000 Fuel Flow
Figures

Gas

Fuel
Injection
N/A
1300HP – F/I 1000HP
Carburetted

N/A 1500HP – F/I
1200HP
E85
Fuel
Injection
N/A
910HP – F/I 700HP
Carburetted


N/A 1050HP – F/I
840HP
