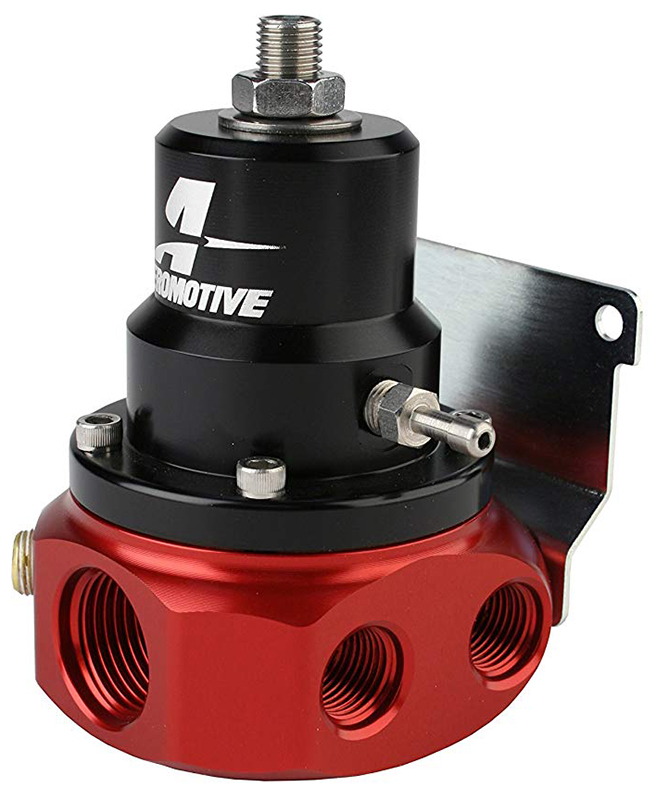

AEROMOTIVE CARB BYPASS 4xPORT -10 IN -8 RET & 4 X -6 3-15PSI
AEROMOTIVE CARB BYPASS 4xPORT -10 IN -8 RET & 4 X -6 3-15PSI
$630.62
Description
The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carburettor application. These regulators are perfect for naturally aspirated or “blow-through” supercharged engines.
Features:
Base fuel pressure adjustable from 3-15 PSI.
(1) ORB-10 inlet port and (1) ORB-08 return port.
P/N 13224 provides (4) ORB-06 outlet ports and 1/8″ NPT gauge port.
Fuel pressure rises on a 1:1 ratio when referencing boost.
Bypass design provides the ultimate, dynamic fuel delivery system.
Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
EFI conversions will require a larger-than-stock return line for proper low pressure control.
Additional information
| Weight | 0.7100 kg |
|---|---|
| Dimensions | 14.00 × 7.00 × 14.00 cm |
| Category list | Carburettor Regulators, Fuel Pressure Regulators, Fuel System |
| Brand | Aeromotive |
