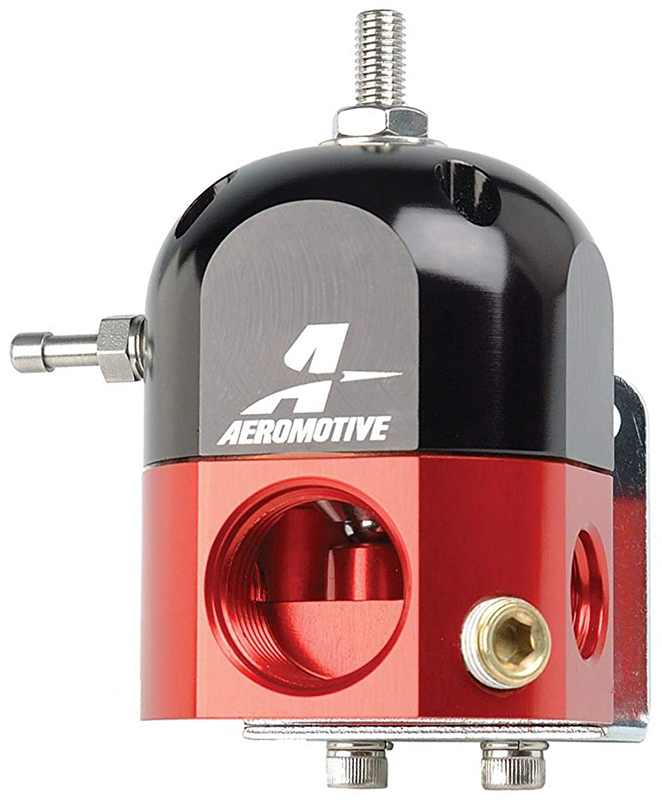

AEROMOTIVE CARB BYPASS REG -10 INL, -8 RET & 2 x -6. 3-15
AEROMOTIVE CARB BYPASS REG -10 INL, -8 RET & 2 x -6. 3-15
$440.00
Description
The A1000 Bypass Regulator was designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carburetted application. This regulator is perfect for naturally aspirated or blow-through supercharged engines.
Features:
Base fuel pressure adjustable from 3-15 PSI
(1) ORB-10 inlet port and (1) ORB-08 return port
(2) ORB-06 outlet ports and 1/8″ NPT gauge port
Fuel pressure rises on a 1:1 ratio when referencing boost
Bypass design provides the ultimate, dynamic fuel delivery system
Ideal for converting from fuel injection to carburetion using the stock, in-tank pump
EFI conversions will require a larger-than-stock return line for proper low pressure control
Additional information
| Weight | 0.5600 kg |
|---|---|
| Dimensions | 18.10 × 5.70 × 12.70 cm |
| Category list | Carburettor Regulators, Fuel Pressure Regulators, Fuel System |
| Brand | Aeromotive |
