ATOMIC TRANS CONTROLLER GM FORD ALSO

Description

There is no reason to
settle on just three gears or
the kickdown linkage of an
automatic transmission with
the number of electronically
controlled four speed
automatics that are available
these days. MSD will take the
mystery out of setting up or
programming an automatic trans
with the Atomic Transmission
Controller.

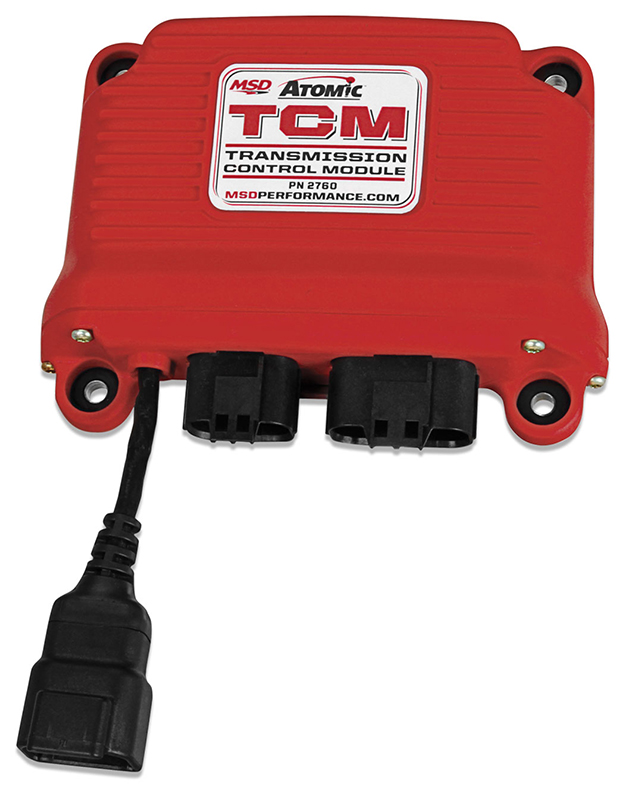

The Atomic
Trans Control Module (TCM) is
based off the popular Atomic
EFI series with the same goal
of making installation and
setup simple. The TCM, PN
2760, is complemented with a
Harness Kit to match your
application. Harness Kits are
available for most GM and Ford
four speed
automatics.

Once
connected, you’ll be able to
easily modify the operating
parameters of your
transmission such as the shift
points, torque converter
clutch behavior, shift
firmness and
more!

PARAMETER
ADJUSTMENT

The Atomic
TCM allows simple parameter
adjustment using the supplied
Handheld Monitor. That’s right
– no need to worry about a PC
and complicated software. The
Handheld connects to the
Atomic TCM and can be left in
place as a dash board to
monitor the transmission in
real-time, or disconnected
once the configuration is
complete.

Once installed
and connected, you need only
specify a few basic parameters
that are listed in the Initial
Setup menu. First and
foremost, select the type of
transmission you are using
(such as a GM 4L60E or Ford
4R70W). All supported
transmission types are listed
in the menu to make this step
easier. Other required fields
under Initial Setup include
the number of engine
cylinders, rear end gear ratio
(and transfer case ratio, if
applicable), and tire
height.

Once the Initial
Setup has been completed, you
can start and drive the
vehicle while taking advantage
of the Advanced Setup menu
items to dial-in the
transmission to your liking.
From the Advanced Setup menu,
you can control shift points
and characteristics like shift
feel and torque converter
clutch operation. There are
also options allowing
adjustment of the desired Wide
Open Throttle (WOT) shifting,
Vehicle Speed Sensor
configuration, and more. You
can feel the results in
real-time as a passenger
manipulates the parameters and
monitors real-time operational
data on the Handheld Monitor!
Data available for viewing
includes engine speed, vehicle
speed, throttle position,
transmission fluid
temperature, shifter position,
commanded gear, and
more!

Features:

• Adjust
  shift points
• Adjust
  torque converter clutch
  behavior
• Select
  different levels of shift
  firmness
• Select
  between auto-shift mode and
  manual-shift
  mode
• Activate Dyno
  Mode to deliver repeatable
  chassis dyno results
