B/HOUSING MAZDA 13B MUNCIE & JERICO ALSO 20B. “NOTES” TKO
B/HOUSING MAZDA 13B MUNCIE & JERICO ALSO 20B. “NOTES” TKO
$2,790.75
Description
Product Description:

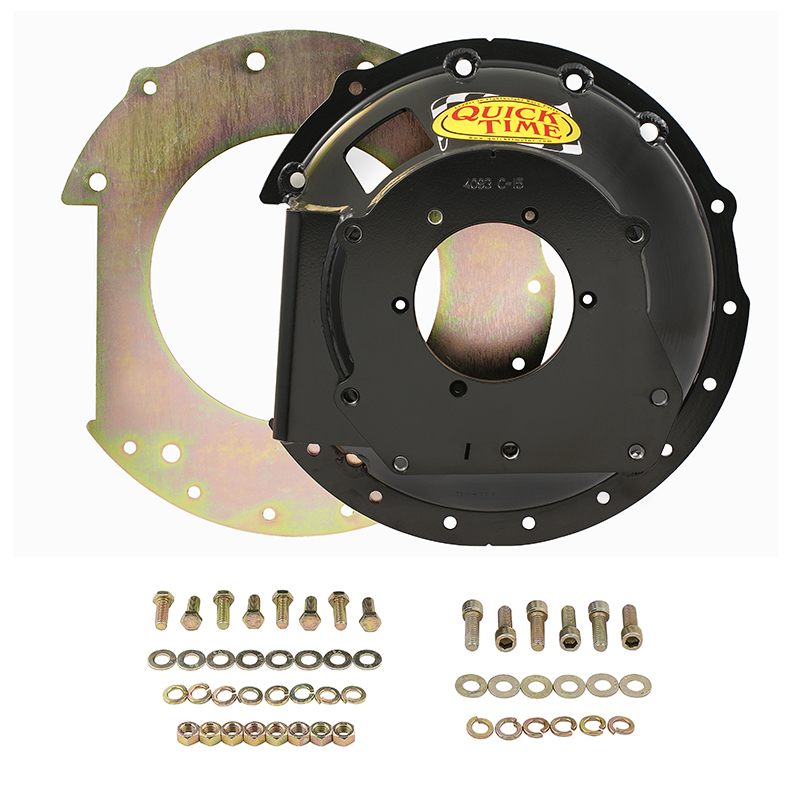

This bellhousing fits Mazda RX7 13B/20B to Muncie/Jerico transmissions. Ideal for drag strip, circle track and high performance street applications.
Features & Benefits:
Built from high grade steel – work hardened to over 80,000 PSI strength. Over two times the strength of typical steel bellhousings. Bellhousing cone is spin formed not rolled or stamped. This process provides consistent wall thickness and incredible strength. Laser cut components are added to assembly and CNC machined with extreme precision to provide a bellhousing that is parallel & centered to within .003″. Precision manufacturing method permits QuickTime bellhousings to be the most dimensionally stable bellhousing available, permits less drivetrain wear. Designed to be the lightest, strongest and most accurate bellhousing available.
Specifications:
Height: 6.300″
Trans. Bore Diameter: 4.685″
Engine: Mazda Rotary 13B / 20B
Clutch Diameter: 7.250″
Flywheel: 125 tooth
Weight: 20lbs
Hydraulic Bearing
Starter: OE
Transmission Application:
Bert Racing
Brin Racing
Falcon
Jerico
Muncie
Richmond
Saginaw
T10
T5 Chev
TKO 500 / 600 Chev
Additional information
| Weight | 19.0400 kg |
|---|---|
| Dimensions | 48.30 × 47.50 × 22.90 cm |
| Category list | |
| Brand | Quick Time |
