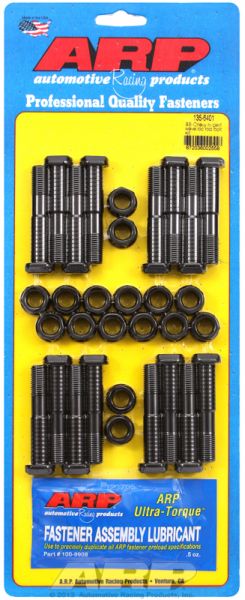

BB CHEV 454 502 ROD BOLTS 7/16HP WAVE 8740
BB CHEV 454 502 ROD BOLTS 7/16HP WAVE 8740
$191.83
Description
CONROD BOLT
8740 CHROME MOLY:
Until the development of today’s modern alloys, chrome moly was popularly considered a high strength material. Now viewed as only moderate strength, 8740 chrome moly is seen as a good tough steel, with adequate fatigue properties for most racing applications, but only if the threads are rolled after heat-treatment, as is the standard ARP production practice. Typically, chrome moly is classified as a quench and temper steel, that can be heat-treated to deliver tensile strengths between 180,000 and 210,000 psi.
WAVE-LOC HIGH PERFORMANCE BOLTS
The same heat-treated 8740 chrome moly steel is used to make these rod bolts as ARP’s standard High Performance rod bolts. The big difference is in the shank design, with ARP’s exclusive (and patented) Wave-Loc technology providing substantial benefits. there are fairly wide tolerances in factory bolt holes, the bolt must be able to fit snugly and a knurl is applied. Unfortunately, these knurls cut deep into the bolt material, leaving sharp edges and enormous “stress risers” that promote failure. That’s why ARP developed the Wave-Loc design that features symmetrical waves and has an effective interference range of .001″ to .005″ for proper cap alignment.
Additional information
| Weight | 1.1000 kg |
|---|---|
| Dimensions | 36.80 × 15.20 × 1.60 cm |
| Category list | |
| Brand | Arp |
