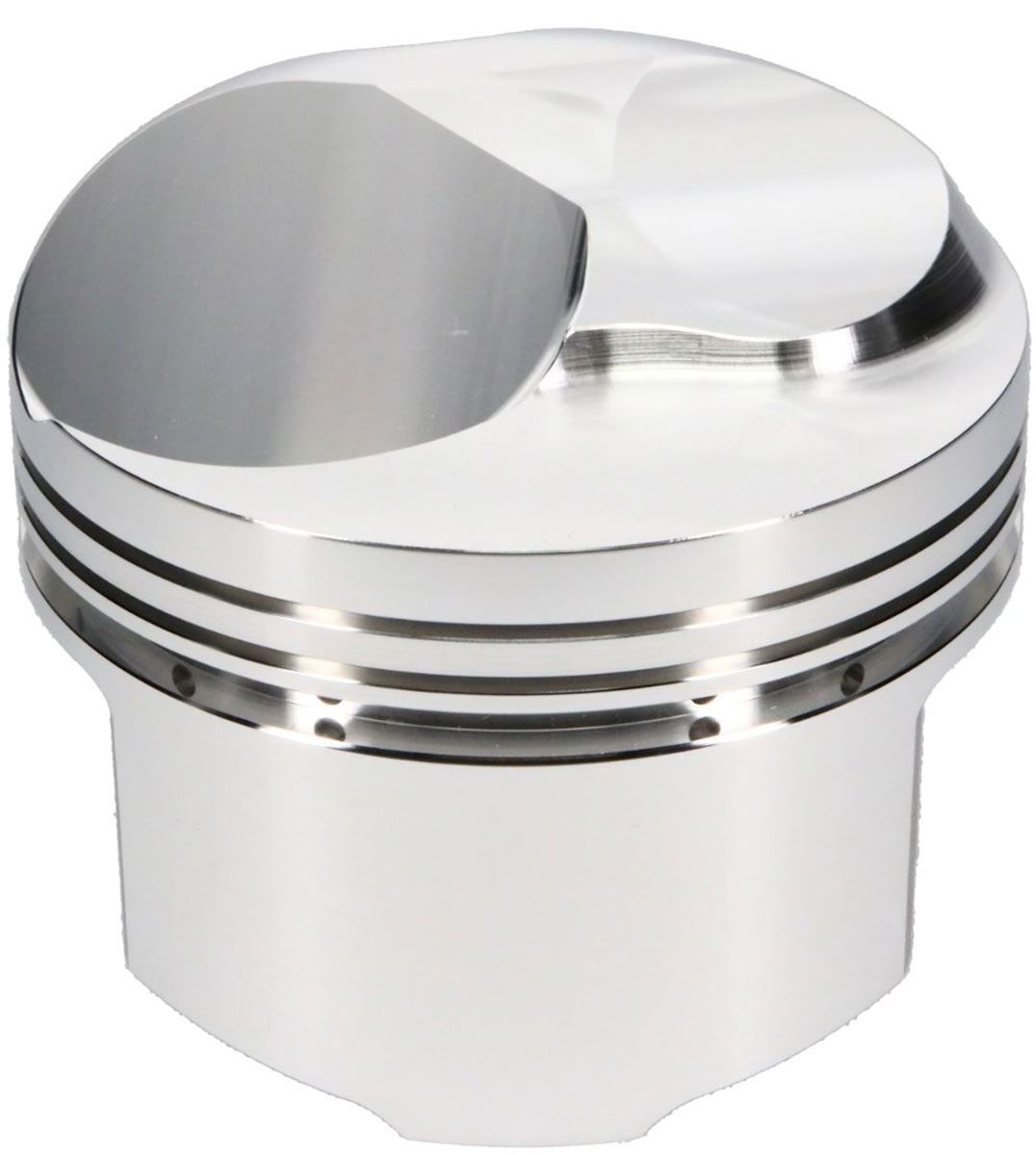

BBC DOME PISTON 48cc 4.350 bore, 4.000 STRK, 6.385 ROD,
BBC DOME PISTON 48cc 4.350 bore, 4.000 STRK, 6.385 ROD,
$1,283.28
Description
This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.
Includes:
Spiro Lock: 990-042-CS
Straight Wall Pin: 990-2930-15-51S
Specifications:
Part #: SRP140687
CID: 475
Bore: 4.350
Stroke: 4.000
Rod Length: 6.385
Compression Height: 1.395
Compression Ratio with 112cc chamber volume: 14.1
Compression Ratio with 118cc chamber volume: 13.2
Compression Ratio with 124cc chamber volume: 12.3
Dome Volume: 48cc
Gram Weight: 664
Oversize: 0.100
Recommended Ring Set: J100S8-4350-5
SRP Pistons was founded in 1997 by JE Pistons, the world’s largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
NOTE: All clearance item sales are final & are not returnable for credit or refund, descriptions are correct as per manufacture
Additional information
| Weight | 8.3000 kg |
|---|---|
| Dimensions | 64.00 × 28.00 × 15.00 cm |
| Category list | |
| Brand | Srp |
