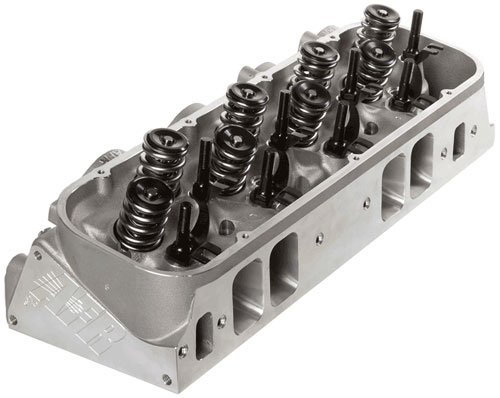

BBC MAGNUM 335CC FULL CNC COMPRECT.121CC CHAMBER

Description

Are you looking for big torque and big horsepower number? AFR’s BB Chevy line of medium volume intake runners will provide you with exactly that. The phrase “having your cake and eating it to” would certainly be appropriate with their moderately sized intake runners producing tremendous flow figures across the entire lift range (CNC 335 flows 410 CFM!). These high flow/high velocity ports provide extreme versatility and fill the needs of many applications. From a max-effort high compression 454 to a 605 CID low rpm marine application, either one of these cylinder heads would be a great choice. These heads would also be ideal in a larger cubic inch “Pro-Street” application with their broad torque range, as well as significant rpm and horsepower capability. These heads will work best with a primary operating range of 3000-7000 rpm’s (This range is an average and will vary with engine displacement as well as component selection). Both the 325cc and the 335cc come standard with AFR’s trademark .750″ thick head deck, reinforced rocker stud bosses, and are equipped with premium one piece stainless steel 2.300″ intake valves and 1.880″ exhaust valves. Standard combustion chamber volume is 121cc for our 335cc BBC. Properly selecting the correct cylinder head for an application depends on a large number of variables.
Basic Package Components:
5-angle valve job
100% CNC Ported Chambers, Exhaust, and Intake
Intake Valve, 2.300″ stainless steel
Exhaust Valve, 1.880″ stainless steel
1.625 O.D. Roller Dual Valve Spring with dampener 255 lbs. on seat, .750″ maximum lift
10° Chrome Moly Retainer
10° Valve Locks
Guide Plates
Viton Valve Seals
Hardened Spring Cup
Intake Valve Seats
Exhaust Valve Seats
Bronze Valve Guides Intake
Bronze Valve Guides Exhaust
AFR BB Chevy 7/16 Exhaust Studs
AFR BB Chevy 7/16 Intake Studs
