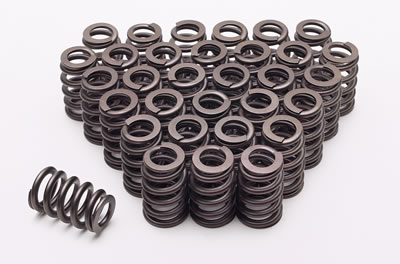

BEEHIVE VALVE SPRINGS 1.470 OD90-252LBS@1.470″ .500″ LIFT
BEEHIVE VALVE SPRINGS 1.470 OD90-252LBS@1.470″ .500″ LIFT
$808.39
Description
PERFORMANCE STREET
COMP Cams Performance Street Valve Springs provide extra stability and endurance. Theseare the most popular COMP springs for street applications and are used primarily by customers with performance hydraulic flat tappet & hydraulic rollersin mind. COMP technicians willmatch the proper spring for each customer’s given lift andinstall height requirements
Spring O.D:
Top .943″/ Bottom 1.105″
Spring I.D:
Top .580″ / Bottom .742″
Seat Load:
90 @ 1.470″
Open Load:
252 @ .970″
Coil Bind:
.900″
Rate (LBS/In):
324 lbs
Max Lift:
.500″
Additional information
| Weight | 1.5700 kg |
|---|---|
| Dimensions | 34.30 × 7.40 × 9.40 cm |
| Category list | |
| Brand | Comp Cams |
