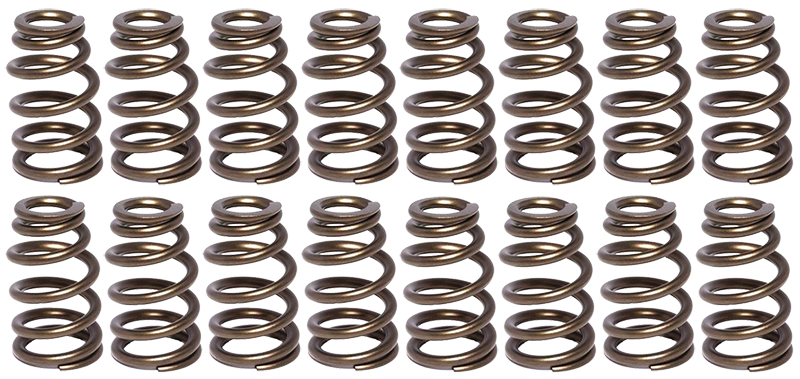

BEEHIVE VALVE SPRINGS 1.585 OD150-410LBS@1.925″ .650″ LIFT
BEEHIVE VALVE SPRINGS 1.585 OD150-410LBS@1.925″ .650″ LIFT
$448.21
Description
More stability, higherRPM, longer life and more horsepower
Requires less spring pressure for better valve control
Reduces the weight of the spring and allows a smaller, lighter retainer
Handles stress more efficiently
Increases harmonic resistance for greater stability
Eliminates damaging harmonics
Increases high RPM horsepower and durability
Places the maximum area of the wire at the point of highest stress
Handles stress more efficiently
Allows better heat dissipation for longer life of the spring
Spring O.D:
Top 1.204″ / Bottom 1.585″
Spring I.D:
Top .721″ / Bottom 1.102″
Seat Load:
150 @ 1.925″
OpenLoad:
410 @ 1.275″
Coil Bind:
1.225″
Rate (LBS/In):
400 lbs
Max Lift:
.650″
Additional information
| Weight | 1.9800 kg |
|---|---|
| Dimensions | 34.30 × 7.10 × 9.40 cm |
| Category list | |
| Brand | Comp Cams |
