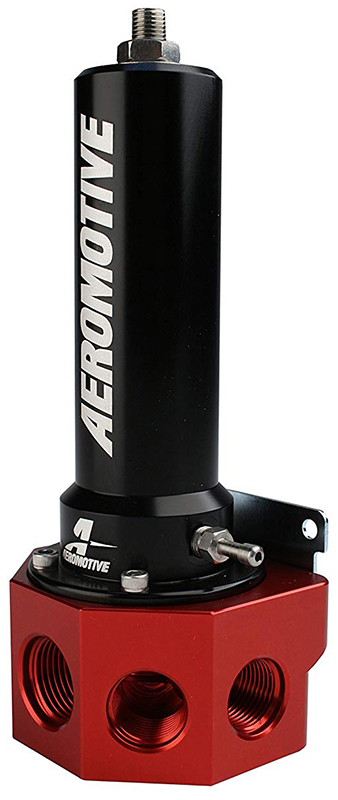

BELT DRIVE EFI REG ADJ 40-100 PSI. GAS & METH 1:1 RATIO
BELT DRIVE EFI REG ADJ 40-100 PSI. GAS & METH 1:1 RATIO
$844.27
Description
Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol.
Features:
Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure
Base pressure adjustable from 40-100 PSI
References Vacuum/Boost on a 1:1 ratio
Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line (Prevents blow-off in high boost applications)
Ports available for nitrous fuel supply, pressure gauges and transducers
(4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port
Additional information
| Weight | 1.0800 kg |
|---|---|
| Dimensions | 21.60 × 10.20 × 12.10 cm |
| Category list | |
| Brand | Aeromotive |
