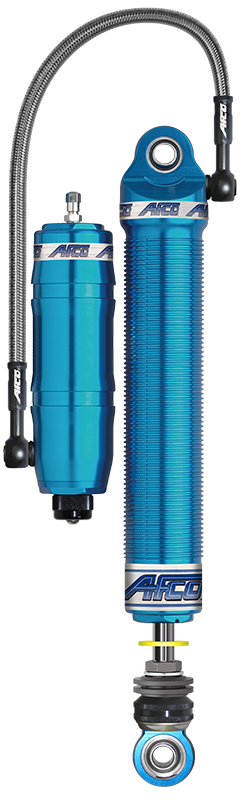

BIG GUN X RADIAL REAR MONOTUBECANISTER. 5″ STROKE DRAG SHOCK

Description

The Big Gun X Series DoubleAdjustable Monotube shocks arespecifically valved for extremely high horsepower dragradial tire equipped applications. With this valving package, chassis tuners can better control the “hit” to the tire using this series of shocks. Drag radial competitors require a unique valving package to control therear suspension and properly apply the radial tire to the track. Don’t “drive thru” yourshocks with that big power! Ifyou have 1,500+ horsepower andare on a drag radial tire, or are using stock suspension, this is the valving package you need to complement your race program. Choose this series of shocks for the ultimate control off the line and superior traction down track. For quicker adjustments, mount your AFCO shocks upside-down for unsprung weight savings and easier access to the rebound adjuster.
Features:
Double Adjustable – broad range of adjustment, click-by-click.
Big Gun X Valving – specifically valved for high horsepower radial tire applications.
Large piston provides superior launch and down track stability.
Gas pressure eliminates cavitationand allows shock to recover faster
Specification:
Big Gun:
5″ Stroke Coil Over
Compresed:
12.20″
Extended:
17.20″
Suggested Spring Height:
10″ – 12″
Suggested Ride Height:
13.20″ -14.50″
