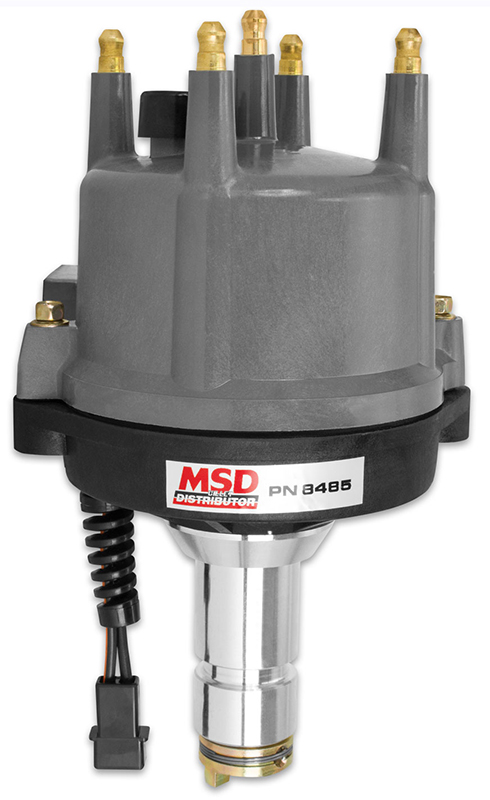

BILLET DISTRIBUTOR VW TYPE 1

Description

• Designed as a
  performance upgrade for VW
  Type I air cooled engines
• Maintenance-free
  magnetic pickup and precision
  reluctor create stable
  trigger signals throughout
  the rpm range
• Easy-to-adjust mechanical
  advance with supplied springs
  and stop bushings
• CNC machined billet aluminium
  housing and Dupont Rynite
  base
• Polished steel
  shaft is QPQ coated and
  guided by a sealed ball
  bearing
• Advance
  plate and weights are fine
  blanked from chrome moly
  steel and QPQ coated for
  friction reduction
• Mechanical advance assembly
  can be locked out for crank
  trigger systems
• Advance weight pins are
  staked and tig welded to the
  plate
• Nylon pads
  ensure smooth operation of
  the advance weights
• Must be used with an MSD
  Ignition Control
• Supplied with bolt down
  distributor cap and rotor
• Must be used with an MSD
  6, SCI or 7 Series Ign ition.
  otor. Does not accept a
  vacuum advance.
• Different style spark plug
  terminals and boots are
  required or use MSD’s custom
  sets, PN MSD3193 or PN
  MSD31939

Using
technology gained from
building distributors for
off-road and NASCAR racers,
MSD offers this Billet
Distributor for the popular
Type 1 engine. A
maintenance-free magnetic
pick-up is responsible for
triggering the MSD Ignition.
This pick-up is accurate to
within 1° at any rpm so
you won’t have to worry about
points float at top end
speeds. The pick-up is
triggered by a precision
reluctor that is attached to
a hardened steel shaft. For
increased stability, a sealed
ball bearing is used to guide
the shaft. Since every engine
application is different, the
MSD Billet Distributor
features an easy-to-adjust
mechanical advance assembly.
By simply changing the
advance springs and stop
bushing you can tune in 24
different advance curves.
