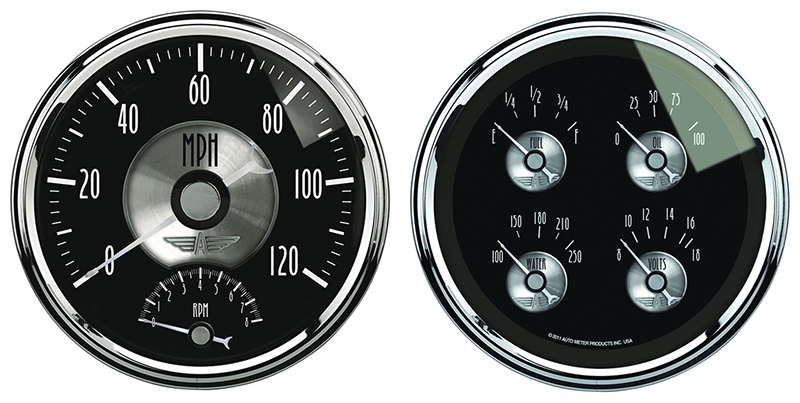

BLACK DIAMOND QUAD GAUGE AND TACH/SPEEDO COMBO KIT

Description

Sometimes space is limited.The AutoMeter Quad Gauge provides a solution to limiteddashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8″ NPT temperature sender and a 1/8″ NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s3262 fuel level sender).
FeaturePoints
Modern white LED through-the-dial lighting provides clear visibility during nighttime use
Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chryslerapplications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8″, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Speedometer hasa simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
Tachometer is compatible with 0.5 – 6 pulse ignition signals(1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
Speedometeris compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
4 in 1 gaugedesign saves valuable real estate on your dash while allowing you to monitor critical parameters
Kit Accessories Included:
Sending Units
Fuel Sender 3262 – Oil Sender 2242 – WaterSender 2258 – VSS Sensor
Adapter/Fitting
3/8″ NPT and 1/2″ NPT adapter fittings
Mounting Hardware
Brackets Included
