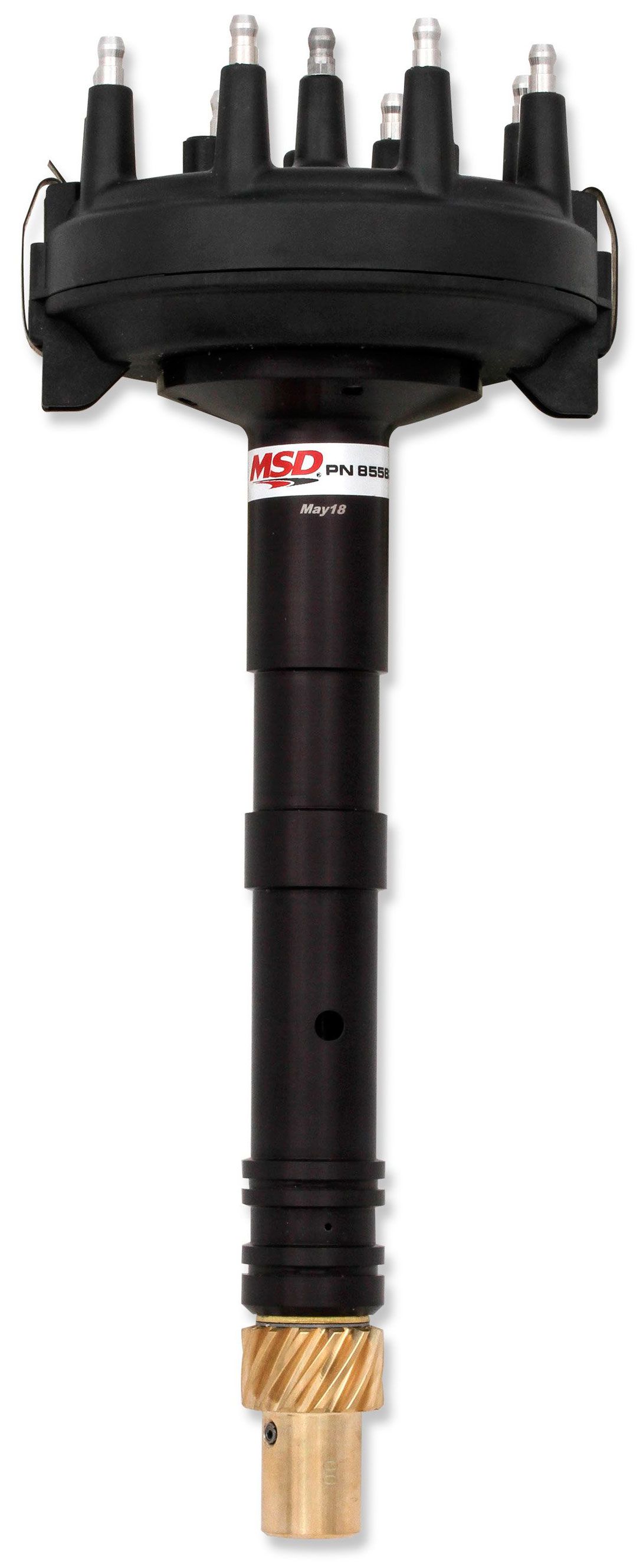

BLK CRANK TRIGGER DISTRIBUTOR CHEV TALL DECK LOW PROF W/SLIP
BLK CRANK TRIGGER DISTRIBUTOR CHEV TALL DECK LOW PROF W/SLIP
$1,168.27
Description
The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. Thisincludes a large diameter cap with wide spaced terminals andan injection molded Rynite rotor with thick vanes to stirup the air inside the cap. Thehigh dielectric Rynite base also prevents arcing to the billet housing. The Tall BlockDistributor has a unique slip collar design. This allows thePN 8558 to fit in most tall block engines that have had the deck height modified.
Features:
Must beused with an MSD Crank Triggerand MSD Ignition Control
Shaft is guided by a sealed ball bearing for long life and highRPM stability
Polishedsteel shaft with a QPQ coatingfor friction reduction
Supplied with bronze gear for race cam applications
Large diameter distributor cap to prevent spark scatter associated with high cylinder pressure engines
Adjustable slip collar mounting flange for engines with modified deckheights
Shaft is guided by a sealed ball bearing and an extra long sintered bushing
O-ring seals can be added to modified blocks to improve oil pressurecontrol
Designed to fit low in the block to clear firewall and intake combinations
Additional information
| Weight | 2.3900 kg |
|---|---|
| Dimensions | 46.20 × 17.80 × 17.50 cm |
| Category list | |
| Brand | Msd |
