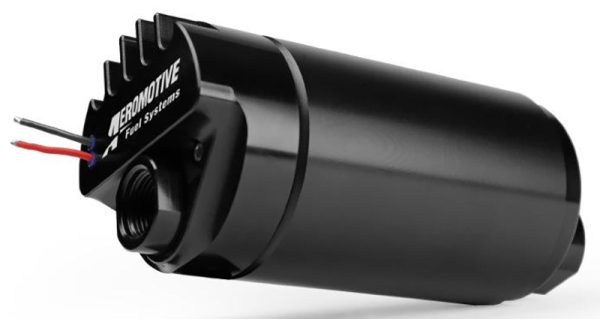

BRUSHLESS A1000 EXTERNAL ROUNDV/SPEED CONT INLINE FUEL PUMP

Description

Aeromotive’s line of
brushless pumps are available
with two different built-in
controllers: the Standard
Configuration of Aeromotive’s
Brushless Controllers, which
provides continuous full-speed
operation, and the New True
Variable Speed Controller
(TVS), which offers the
advantages of pump speed
control vial a 0-5V analog DC
input signal. The TVS
Controller capitalizes on our
existing brushless technology
by reducing fuel flow during
low-demand and decreasing an
already low current draw,
therefore minimizing the
introduction of heat even
further.

The Brushless
A1000 and Eliminator feature
the same legendary roller vane
pumping mechanisms that have
been trusted for decades, now
simply offered with the latest
in electric motor
technology.

Pump
Features:

• ORB-12 inlet port and ORB-10
  outlet port
• EFI
  applications use regulator
  #13134 or
  #13305
• Carburetted
  applications use regulator
  #13212 or #13202
• Fully
  submersible for custom,
  in-tank
  placement
• Perfect for
  “blow-through” carburetted
  engines up to
  1,700hp
• Speed Pump
  Controller (#16306) required
  for street
  applications

A1000 Fuel Flow
Figures

Gas

Fuel
Injection
N/A
1300HP – F/I 1000HP
Carburetted

N/A 1500HP – F/I
1200HP
E85
Fuel
Injection
N/A
910HP – F/I 700HP
Carburetted

N/A 1050HP – F/I
840HP
