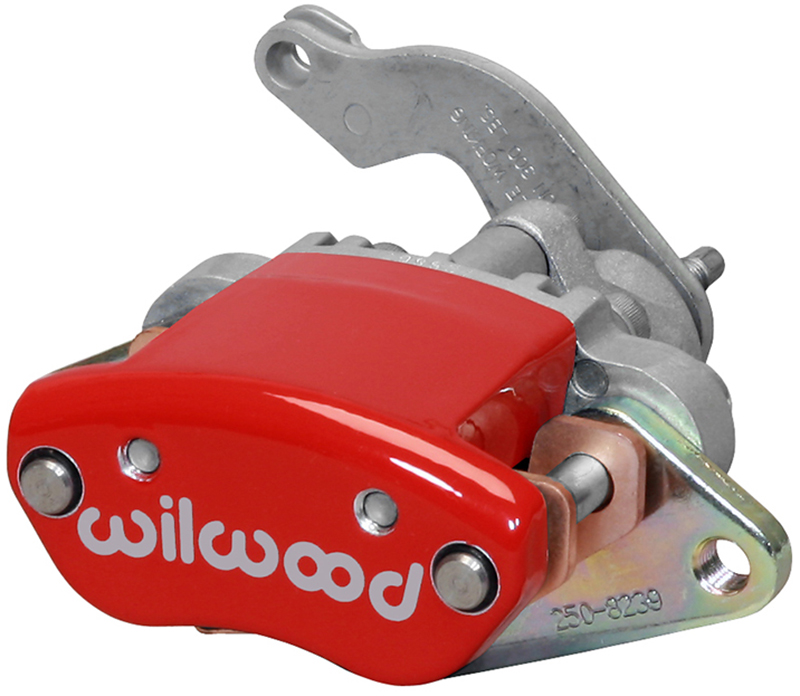

CALIPER-MC4-L/H – RED WITH LOGO. MECHANICAL CALIPER

Description

MC4
Mechanical

Wilwood’s MC4 Mechanical
Parking Brake Caliper is a
multi-use, cable operated
brake caliper that combines
high output performance with
simplicity in design and
construction, and is the
perfect solution for vehicle
applications requiring a
separate, mechanically
actuated parking brake
caliper. Built to accept
rotors that are .810” thick,
with 11.00″ – 12.88″ diameter
range, the MC4 combines an
efficient die cast body with a
forged billet anvil for
superior strength under load,
yet is lightweight at only
3.30 (2.95 without pads)
pounds. Supplied with each
caliper are our Composite
Metallic (CM) high-friction,
high static-hold brake pads,
and are pre-fitted with noise
cancelling
shields.

Engineered with
noise-dampening features for
quiet, rattle-free operation,
the MC4 sliding caliper
includes a steel bracket for
convenient mounting. Available
in both right-hand and
left-hand construction, the
caliper’s lever cartridge
can be clocked in three
positions for optimum
positioning and ease of cable
routing. The 1.19″ aluminium
piston is fully dust booted to
keep moisture and debris out.
Each caliper is fitted with a
cable return spring, and the
mechanical lever accepts a
.310″ diameter barrel-ended
parking brake cable. The
convenient manual adjuster
requires no special tools,
allowing incremental
adjustment to compensate for
pad and rotor wear. MC4
calipers are available with
either black, silver or red
high-gloss, high-temp, brake
fluid resistant powder coat
and feature Wilwood’s
signature logo.
