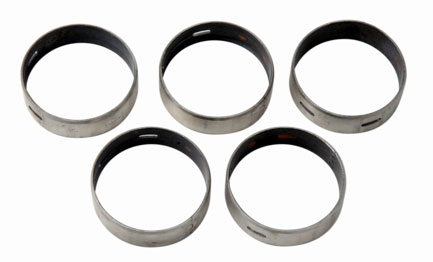

CAM BEARINGS 302/351 WINDSOR RACE BLOCKS & STD CAM

SKU FMM-6261-J351 Category Brand:

CAM BEARINGS 302/351 WINDSOR RACE BLOCKS & STD CAM

$219.79

Description

High-strength aluminum block, 356-T6 grade aluminum
Splayed 4-bolt, steel billet main caps on 2, 3 and 4
2-bolt main caps on 1 and 5
4.110″-4.115″ bore as delivered, cast iron sleeves ? finish at 4.125″
9.5″ deck height, accepts small block timing chain, timing chain cover and oil pump

2.75″ crankshaft (351C) main journal diameter. 2.9415″-2.9425″ diameter finished main bearing bore
Lifter bores finished .8753″-.8768″

2.2032″-2.2052″ diameter cam bearing bores. Uses M-6261-J351 or M-6261-R351 cam bearings

Maximum stroke 4.250″
Wet sump oiling system
Weight 118 lbs

Additional information

Weight 0.2500 kg
Dimensions 16.00 × 10.00 × 10.00 cm
