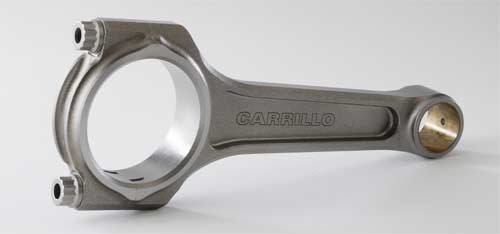

CARRILLO A BEAM 6.0LJ 3/8BOLT WMC BOLTS

Description

Carrillo uses proprietary
chrome, nickel, moly,
vanadium alloy which meets
all VAR (vacuum arc re-melt
ASTM standards). The heat is
validated, both by the
supplier and an independent
metallurgist whom confirm the
desired physical and chemical
properties of steel.

All heat treat processes are
via a mar-aged operation,
resulting in UTS of 195,000
with a yield of 182,000 while
maintaining the critical
elements of low
notch-sensitivity and
ductility.

All Carrillo
connecting rods are
manufactured from an
oversized forging resulting
in the proper grainflow as
well as the surface removal
of any potential inclusions
or surface conversions
generated by the forging
process. All critical CNC
machines at Carrillo are
equipped with probing to
accurately validate
dimensional integrity. In the
production process each part
is magnafluxed at least
twice, further each piece is
Rockwell tested to validate
the heat treat procedure. A
final shotpeen operation
completes the part.
