CAST ALUMINIUM BELLHOUSING KITSBC BBC TO TREMEC TKO / TKX

Description

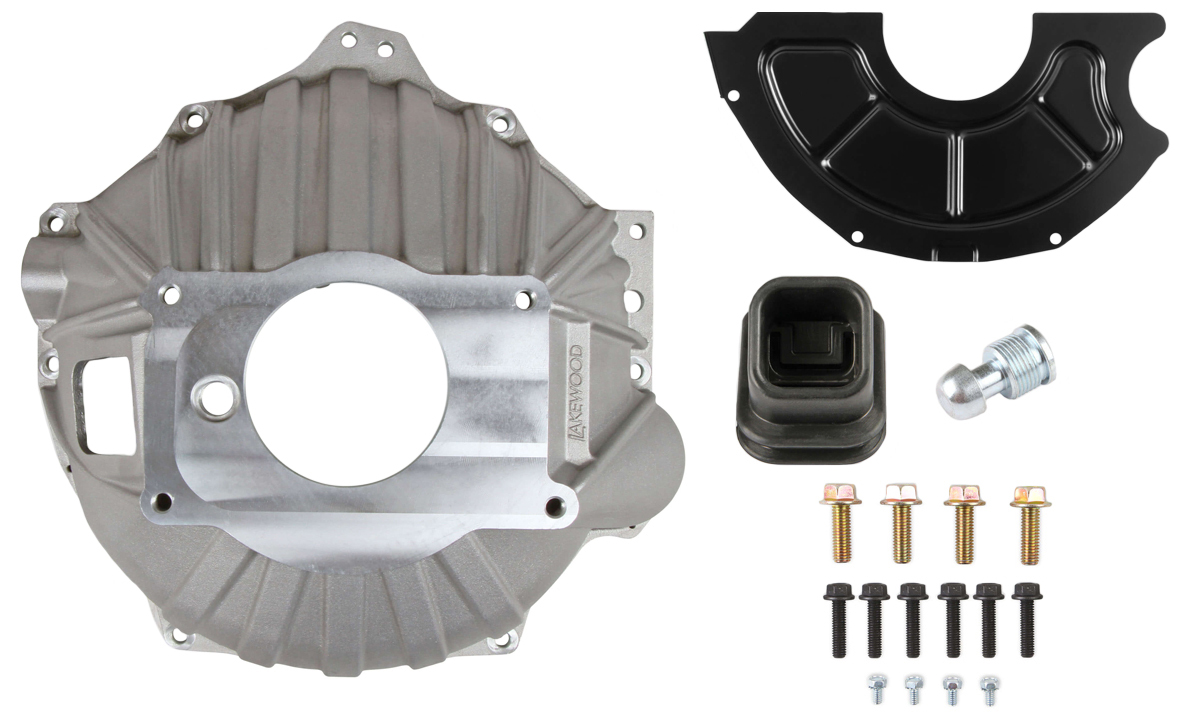

The Lakewood cast aluminium
bellhousings connect Chevy
small and big block engines to
transmissions utilising the
standard GM pattern such as
the Muncie, Saginaw, Borg
Warner T10 and Tremec TKO/TKX
transmissions. The
bellhousings are designed for
both GM cars and trucks and
other manufacturers where swap
applications are being
installed. These bellhousing
kits come complete with clutch
fork boot, inspection cover
and Grade 8 mounting hardware.
The bellhousing, clutch fork
boot, inspection covers and
mounting hardware kits are
also available
individually.

– Lightweight
cast aluminium design similar
to the original equipment
bellhousings
– Lower cost
non-SFI rated option if your
project does not require the
steel SFI rated unit
–
Designed for hydraulic and
mechanical fork throwout
bearing linkage
–
Bellhousing depth:
6.45″
– Clutch fork
opening: 2.125″ x
3.3″
– Transmission
bore diameter: 4.684″

– Includes grade 8
hardware
– LK4000
bellhousing also available
separately
