CHARGING SYSTEM ANALYSER

Description

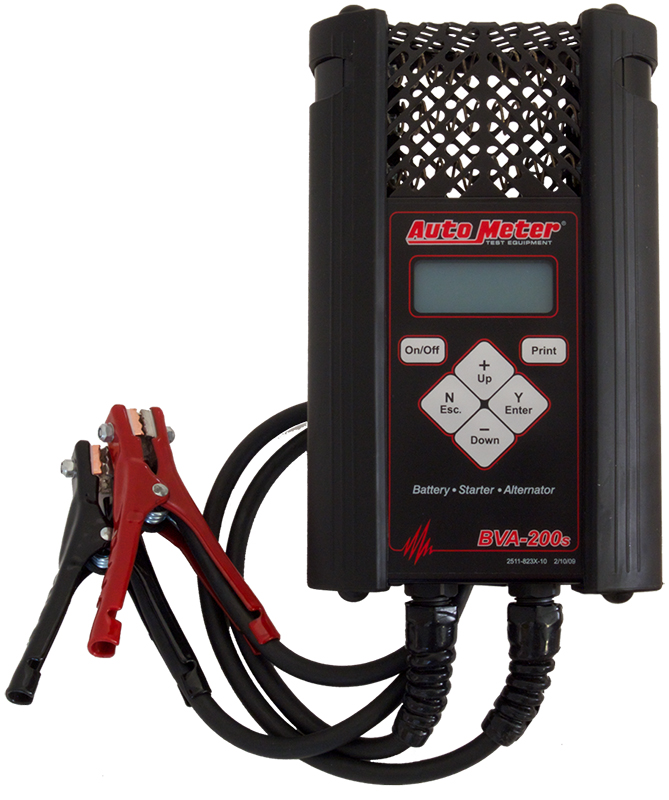

The BVA-200s is a durable
hand held battery and
electrical system tester with
an on-board 120 amp load for
heavy use in a professional
shop environment. This tester
comes with a rugged anodized
aluminum housing, rubber hand
grip, and 6 gauge leads with
heavy duty clamps. Performs a
complete electrical system
test in 82
seconds!

• Tests 6V
  and 12V flooded and AGM
  batteries rated between
  100-1600 CCA or 10-265 AH.
  Tests starting/charging
  circuits, discharged
  batteries, and detects bad
  cells.
• Automatically
  stores results of last 150
  completed tests for easy
  review. Wirelessly
  communicates to optional test
  results printer via infrared
  or outputs to PC via AC-12
  cable.
• Unlike
  competitor models, AutoMeter
  testers only require a single
  technician to run a full
  electrical system test due to
  our on-board 120 amp True Load
  cell. This eliminates the need
  to apply inconsistent loads,
  such as headlights, fans, etc.
  which makes
• English
  and Spanish language menus and
  test results.
• Charging
  system test results measure
  alternator current output,
  voltage regulation, and diode
  ripple delivering a pass or
  fail result.
• Advanced
  Digital Pulse Load (DPL)
  technology – patented test
  process and algorithm allowing
  operators of this product to
  rapidly measure a battery’s
  ability to provide adequate
  cranking power necessary to
  start the vehicle without the
  need for time
  consum
• True-Load –
  This AutoMeter equipment is
  unique compared with other
  products on the market in that
  this tester has the ability to
  apply a known significant load
  (True-Load) directly through
  the tester connections
  allowing for a more rapid and
  accurate test
• 16
  Gauge, 20″ leads with
  professional grade clamps that
  are easily field
  serviceable
• Intuitive
  menu driven operation,
  transmitted via backlit LCD
  screen for ease of
  use.
