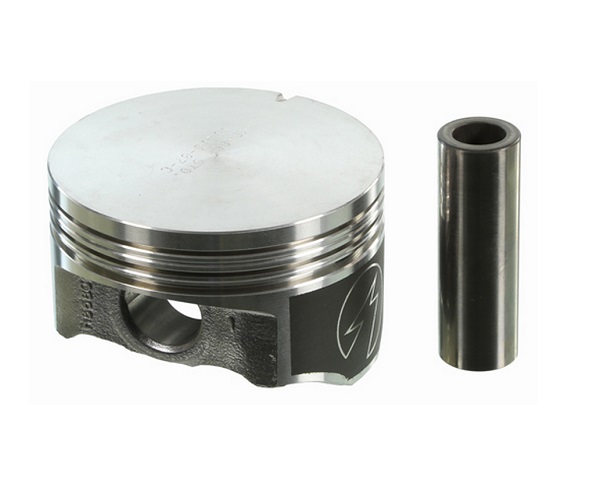

CHEV 346 LS1 FLAT TOP PISTON +.25mm (.010) HYPER – NOTES

Description

Available on both
hypereutectic and POWERFORGED
pistons, DUROSHIELD is an
exclusive moly-graphite skirt

coating that extends
engine life and essentially
eliminates scuffing. This
technologically advanced
coating is precisely applied
to the piston through a
computer-controlled process.

DUROSHIELD
skirt coated pistons:

• Reduce friction
  for increased fuel economy
  and horsepower
• Essentially eliminate
  scuffing and wear
• Prevent damage from
  inadequate lubrication,
  especially at start-up
• Improve cylinder sealing
  for less blow-by and more
  power
• Require no
  increase in skirt clearance

Piston
Specifications :

• CID: 349
• Bore: 3.910
• Stroke:
  3.620
• Rod Length:
  6.098
• Compression
  Height: 1.328
• ssion Ratio with 66cc chamber
  volume: 10.10
• Dome
  Volume: -5.0cc
• Pin
  Type: Press
• Recommended Ring Set: Moly –
  SPE938K 25MM, STD Fit – N/A,
  File Fit – SPR10598 38MM
