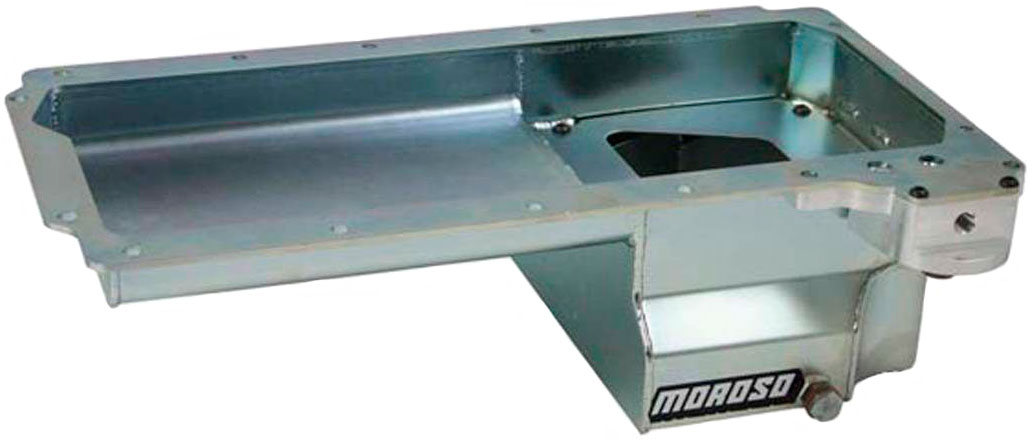

CHEV LS ROAD RACE OIL PAN REAR SUMP, W/ OIL FILTER MOUNT
CHEV LS ROAD RACE OIL PAN REAR SUMP, W/ OIL FILTER MOUNT
$1,202.11
Description
Early F-Body/Swap Engine Application: GM LS Series Fits: 1967-’92, 2010-’15 Camaro, 1968-’78 Nova,1965-’72Chevelle, 1953-’96 Corvette, 1978-’88 G-Body and GM S10/S15Two Wheel Drive Blazer/Truck. Can also be used in additionalapplications check dimensions for clearance
For GM LS Series Engine Blocks
Fits -68-’72 Nova, ’65-’72 Chevelle, ’67-’69 Camaro, Can also be used in additional applications; check dimensionsfor clearance
Oil pan has a thick precision laser cut steel rail and a clear zinc finish
Clears 4.25″ stroke with most steel rods
Features a race proven diamond shape four trapdoor assembly and anti-slosh baffle that keeps oil contained in oil pump pick up area during road racing and drag racing
The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
Features a billet aluminum adapter that allows a 13/16″ thread Moroso Part No. 22462 or O.E.M. oil filter to be mounted in the stock location, no need to runa remote oil filter
Included billetaluminium oil filter adapter has a 1/4″ N.P.T. sensor port
Uses stock dipstick
Accepts GM Part No. 12558253 Windage Traywith modification
Additional information
| Weight | 9.9300 kg |
|---|---|
| Dimensions | 27.30 × 30.50 × 64.80 cm |
| Category list | |
| Brand | Moroso |
