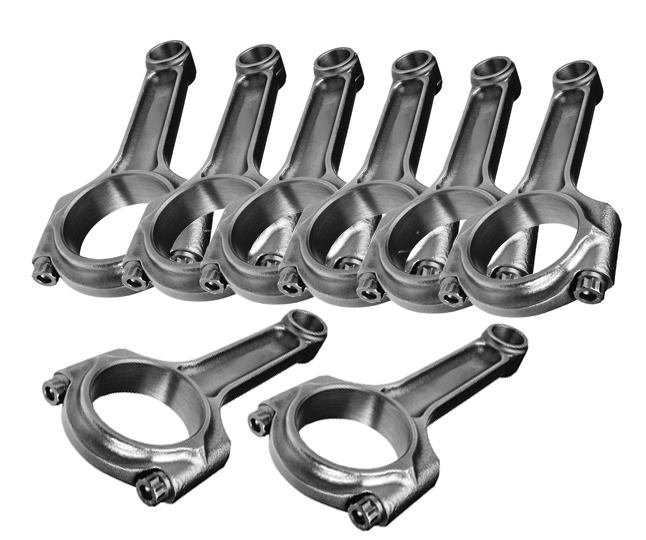

CHEV S/B I-BEAM 6.0 C/ROD SET BUSHED 7/16 CAP BOLTS *NOTES*

Description

With ARP 7/16″ CAP SCREWS, The ultimate I-Beam rod that incorporates the strength and technology of the H-Beam rod.
6.000″ Rod Length.
2.100″ Journal size.
.927″ Pin dia.
.940″ B.E. Width.
Bushed

7/16″ ARP 8740 Cap Screws.
Scat offers the best possible I-Beam Rod which offers a unique forging design to strengthen the big end. Stronger than all other I-Beam designs.
High Tensile 4340 Forged Material for Durability.
Balanced at Scat to ±1 gram in steps.
Single rib cap design for added strength and bearing support.
Polished beams to eliminate stress risers.
Special hollow dowels and huge 7/16″ cap screw bolts greatly increase strength and horsepower capabilities

All Scat Rods are precision honed on the latest Sunnen Equipment.
Profiled clearance for stroker applications.

All rods available with ARP 2000 bolts, upon request.
SCAT connecting rods feature the same high-quality craftsmanship that has led us to the forefront of the performance industry. SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. We offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, Holden and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT’s master machinists.
