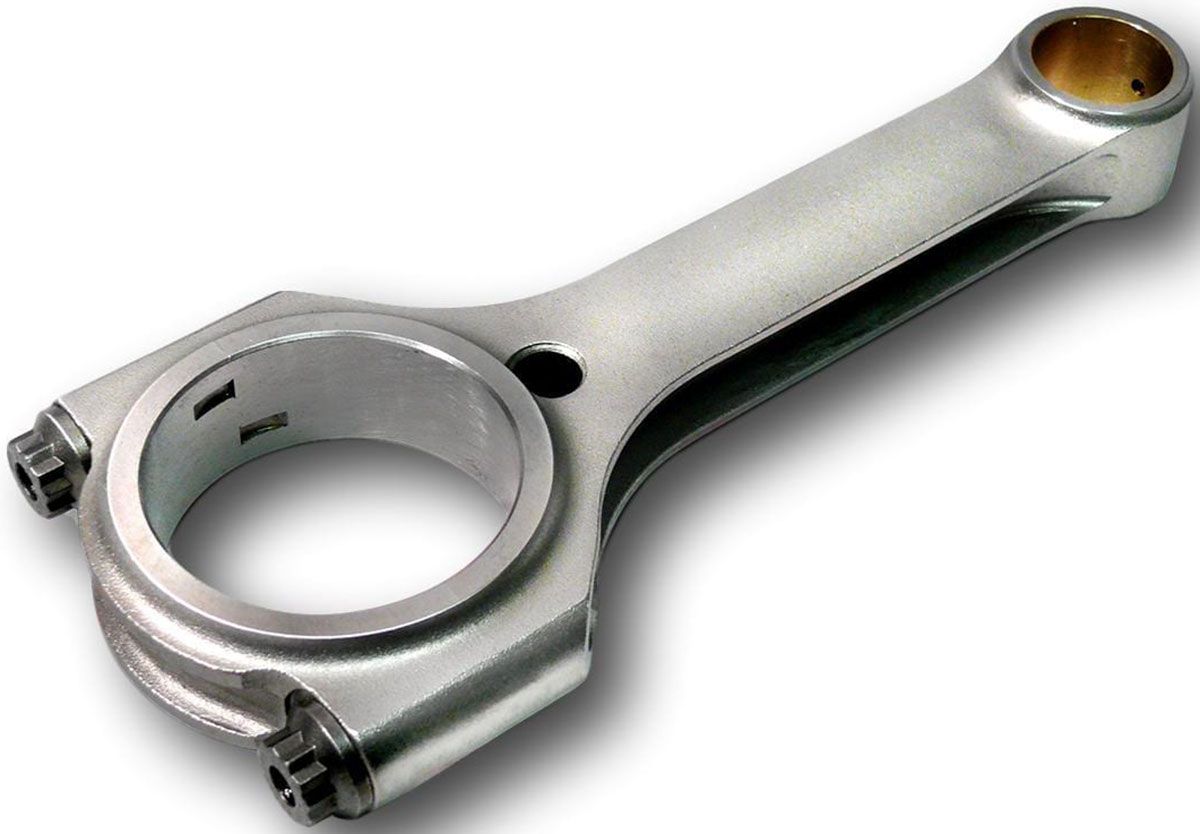

CHEV S/J 5.850 H-BEAM CONRODS Q-LITE, STROKER CLEARANCED
CHEV S/J 5.850 H-BEAM CONRODS Q-LITE, STROKER CLEARANCED
$1,566.65
Description
With ARP 7/16″ CAP SCREWS, The ultimate I-Beam rod that incorporates the strength and technology of the I-Beam rod.
6.700″ Rod Length.
2.200″ Journal size.
.990″ Pin dia.
.992″ B.E. Width.
Bushed
Stroker Clearanced
7/16″ ARP 8740 Cap Screws.
Formula 1-inspired lightening hole for Ultra Lite weight reduction
Cut for cam clearance on longer stroke
Double rib cap design for added strength and bearing support
Polished and shot peened beams to eliminate stress risers
Special hollow doweled cap for accurate cap-to-rod beam alignment
Available with 7/16†ARP2000 or L19 cap screw bolts
SCAT connecting rods feature the same high-quality craftsmanship that has led us to the forefront of the performance industry. SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. We offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, Holden and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT’s master machinists.
Additional information
| Weight | 5.0000 kg |
|---|---|
| Dimensions | 30.50 × 25.40 × 10.20 cm |
| Category list | |
| Brand | Scat |
