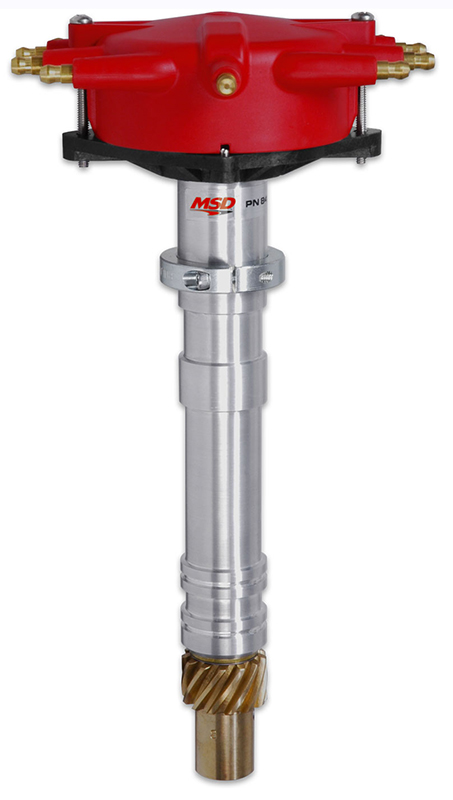

CHEV V8 CRAB CAP DISTRIBUTOR USE WITH CRANK TRIGGER**NOTES*

Description

Designed to fit low in the block to clear firewall and intake combinations
CNC machined billet aluminium housing and Dupont Rynite base
Adjustable slip collar for engines with modified deck heights

Oversized polished steel shaft with a QPQ coating for friction reduction
Shaft is guided by a sealed ball bearing and an extra long sintered bushing

Special oil tract improves lubrication to the distributor and cam gear
O-ring seals can be added to modified blocks to improve oil pressure control
Supplied with small, low crab style distributor cap, rotor and bronze gear
Must be used with an MSD Crank Trigger and MSD Ignition Control
The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a spe cial low-profile crab distributor cap to allow it to fit in extremely tight areas. The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning this distributor is MSD own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.
