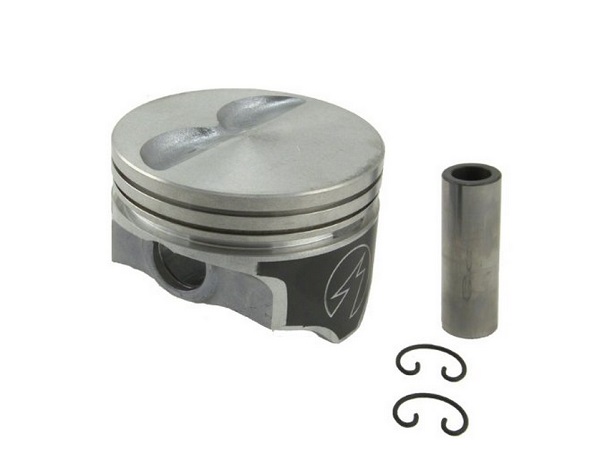

CHRYSLER 360 FLAT TOP PISTONS CNC HYPER 4.040 BORE -5cc

Description

Available on both
hypereutectic and POWERFORGED
pistons, DUROSHIELD is an
exclusive moly-graphite skirt

coating that extends
engine life and essentially
eliminates scuffing. This
technologically advanced
coating is precisely applied
to the piston through a
computer-controlled process.

DUROSHIELD
skirt coated pistons:

• Reduce friction
  for increased fuel economy
  and horsepower
• Essentially eliminate
  scuffing and wear
• Prevent damage from
  inadequate lubrication,
  especially at start-up
• Improve cylinder sealing
  for less blow-by and more
  power
• Require no
  increase in skirt clearance

Piston
Specifications :

• CID: 360
• Bore: 4.040
• Stroke:
  3.578
• Rod Length:
  6.123
• Compression
  Height: 1.637
• Compression Ratio with 63cc
  chamber volume: 10.10
• Compression Ratio with 65cc
  chamber volume: 9.89
• Compression Ratio with 68.4cc
  chamber volume: 9.54
• Compression Ratio with 71cc
  chamber volume: 9.62
• Dome Volume: -5.0cc
• Pin Type: Press Or Float
• Recommended Ring Set:
  Moly – SPE251K 040, STD Fit –
  SPR9903 040, File Fit –
  SPR9343 045
