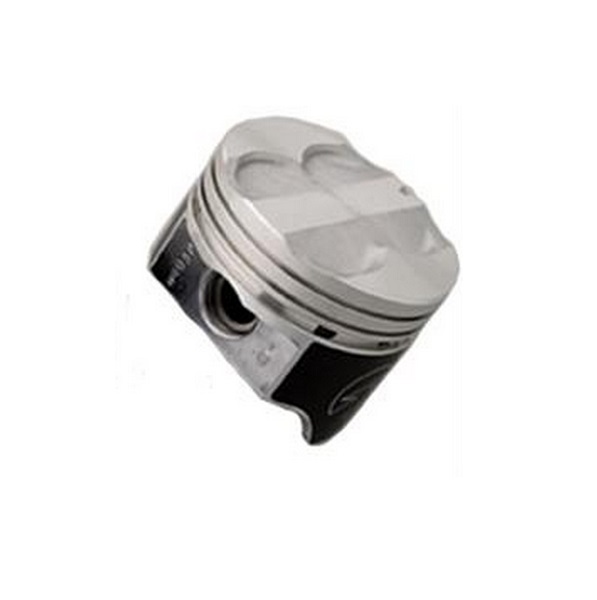

CHRYSLER 360 FLAT TOP PISTONS HYPEREUTECTIC 4.030 BORE -10CC

Description

These ruggedly durable
pistons are made with
exclusive high strength FM425
alloy, and enhanced with
16.5% silicon for excellent
tensile strength and scuff
resistance. This advanced
metallurgy permits tighter
bore clearances, which help
minimise noise on cold engine
start-up. These pistons are
the ideal choice for street
performance applications and
late-model replacement.

More Sealed Power
hypereutectics benefits:

• Higher
  strength than cast or forged
  at operating temperature
• Finely dispersed silicon
  particles provide a highly
  resistant wear surface and
  reduces scuffing
• Lower material growth allows
  pistons to be fit tighter,
  improving cylinder sealing
  for less blow-by and more
  power
• High silicon
  content allows elimination of
  groove inserts in certain
  applications
• Designed
  to retain standard ring gaps
  in the top groove

Piston Specifications
:

• CID:
  365
• Bore: 4.030
• Stroke: 3.578
• Rod
  Length: 6.123
• Compression Height: 1.637
• Compression Ratio with
  63cc chamber volume: 9.11
• Compression Ratio with
  65cc chamber volume: 8.94
• Compression Ratio with
  68cc chamber volume: 8.66
• Dome Volume: -10.0cc
• Pin Type: Press
• Recommended Ring Set: Moly –
  SPE251K 030, STD Fit –
  SPR9903 030, File Fit –
  SPR9343 035
• Coated
  skirt
