DAKOTA FUEL LEVEL SENDER 180 OHM FULL 10 OHM EMPTY
DAKOTA FUEL LEVEL SENDER 180 OHM FULL 10 OHM EMPTY
$148.49
Description

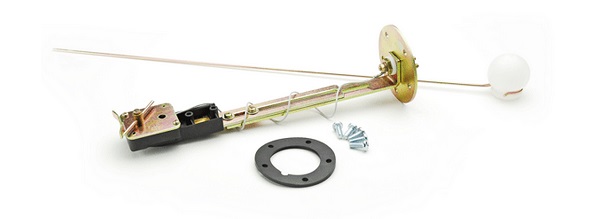

Universal Automotive Fuel Level Sender with an adjustable float will accommodate many aftermarket fuel cells.
Resistance range: 10 ohms empty -180 ohms full (VDO style)
GM Style 5-bolt mounting pattern: 2.8†overall flange size,  2.125″ bolt circle, 1.7″ hole size
5x 10-32 x ½†mounting screws and gasket included
Adjustable to tank depths of 6-23″
Top-mount applications only; without fuel pickup or return line
Compatible with all Dakota Digital Automotive gauges (not compatible with Motorcycle or UTV)
Additional information
| Weight | 0.5000 kg |
|---|---|
| Dimensions | 44.00 × 8.00 × 8.00 cm |
| Category list | |
| Brand | Dakota Digital |
