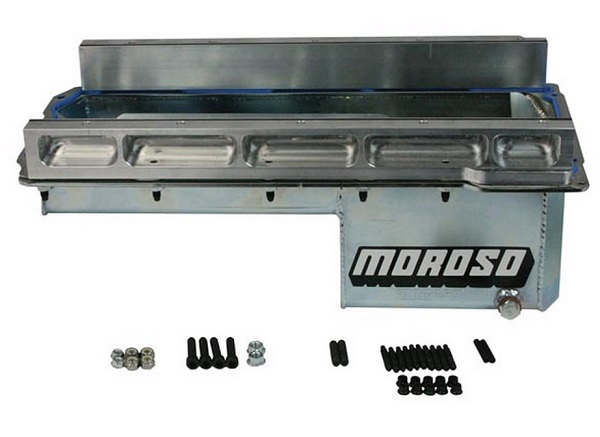

DART LS NEXT OIL PAN 6.6L CAPACITY, REAR SUMP
DART LS NEXT OIL PAN 6.6L CAPACITY, REAR SUMP
$1,536.77
Description
Features:
Includes Dart LS Next oil pan and Moroso Part No 22934, Billet Aluminium Spacers with mounting hardware
Oil pan has a 3/16″ thick precision laser cut steel railspecifically designed for the LS Next Engine Block
Features a trap door baffle and a removable windage tray that wraps aroundthe oil pump for horsepower savings and oil control
Has a 16 gaugesteel sump to stand up to the toughest racing conditions
Front of the oil pan is 2 ¼” deep tothe beginning of the 6″ deep sump
The sump is 8 1/4″ long and 8 3/4″ wide
Clears 4.125″ stroke with most steel rods
The included billet aluminium spacers, mount between the engine blockand the oil pan with the supplied mounting hardware, sealing via the built in O-ring groove and requires a stock GM LS Gasket
Additional information
| Weight | 11.9100 kg |
|---|---|
| Dimensions | 27.30 × 30.50 × 64.80 cm |
| Category list | |
| Brand | Moroso |
