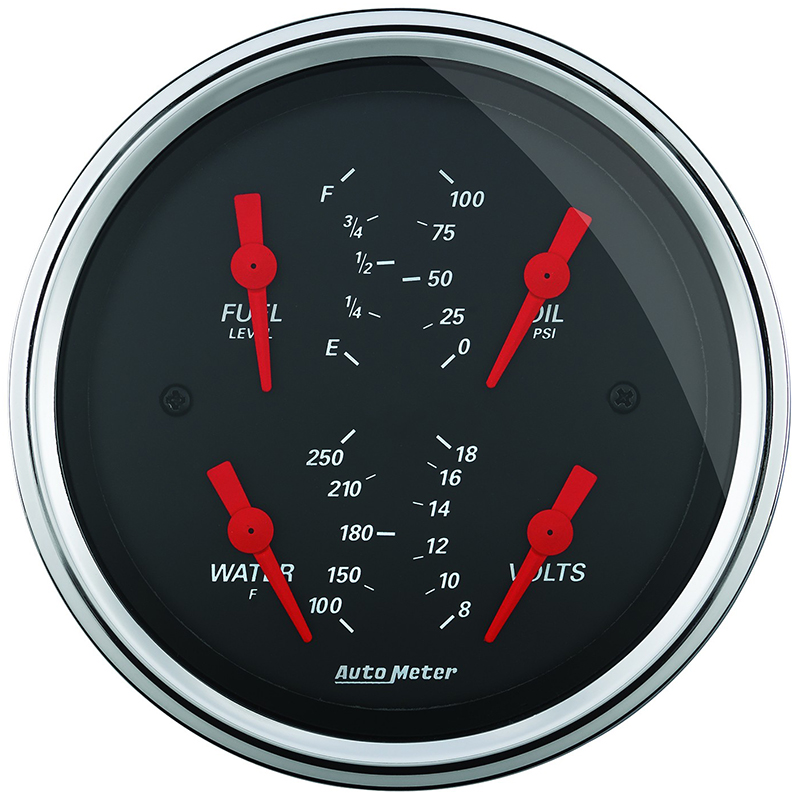

DESIGNER BLACK QUAD GAUGE 3-3/8″, FUEL,OIL,WATER,VOLTS
DESIGNER BLACK QUAD GAUGE 3-3/8″, FUEL,OIL,WATER,VOLTS
$515.27
Description
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8†NPT temperature sender and a 1/8†NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Feature Points
Traditional incandescent lighting illuminates around the perimeter of the dial
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
AutoMeter’s race proven air-core electric instrumentsprovide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Gauge kit includes 1/8†NPT pressure sender, 1/4†NPT adapter, 1/8†NPT temperature sender, 3/8†and 1/2″ NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Additional information
| Weight | 0.5200 kg |
|---|---|
| Dimensions | 15.90 × 15.20 × 15.90 cm |
| Category list | |
| Brand | Auto Meter |
