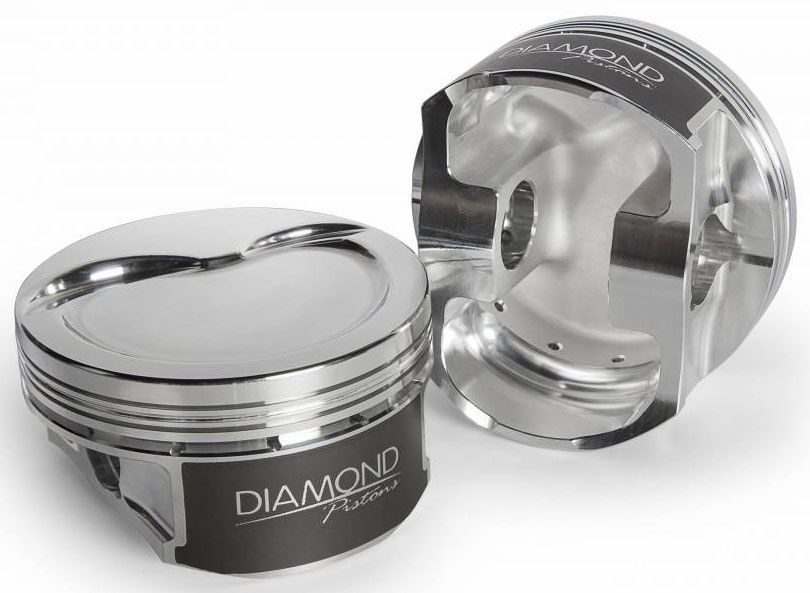

DIAMOND LSA 4.070″ BORE 4.00″ ST 6.125″ ROD .927 PIN -15CC D
DIAMOND LSA 4.070″ BORE 4.00″ ST 6.125″ ROD .927 PIN -15CC D
$2,579.31
Description
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most aftermarket cylinder heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250″
Ratios figured for .040 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.178″ intake and .108″ exhaust
2618 material for High HP-NOS-Boost applications
Additional information
| Weight | 6.2500 kg |
|---|---|
| Dimensions | 70.00 × 28.00 × 13.00 cm |
| Category list | |
| Brand | Diamond |
