DIGITAL DASH W/ TOUCH SCREEN FOR HOLLEY EFI SYSTEMS ONLY

Description

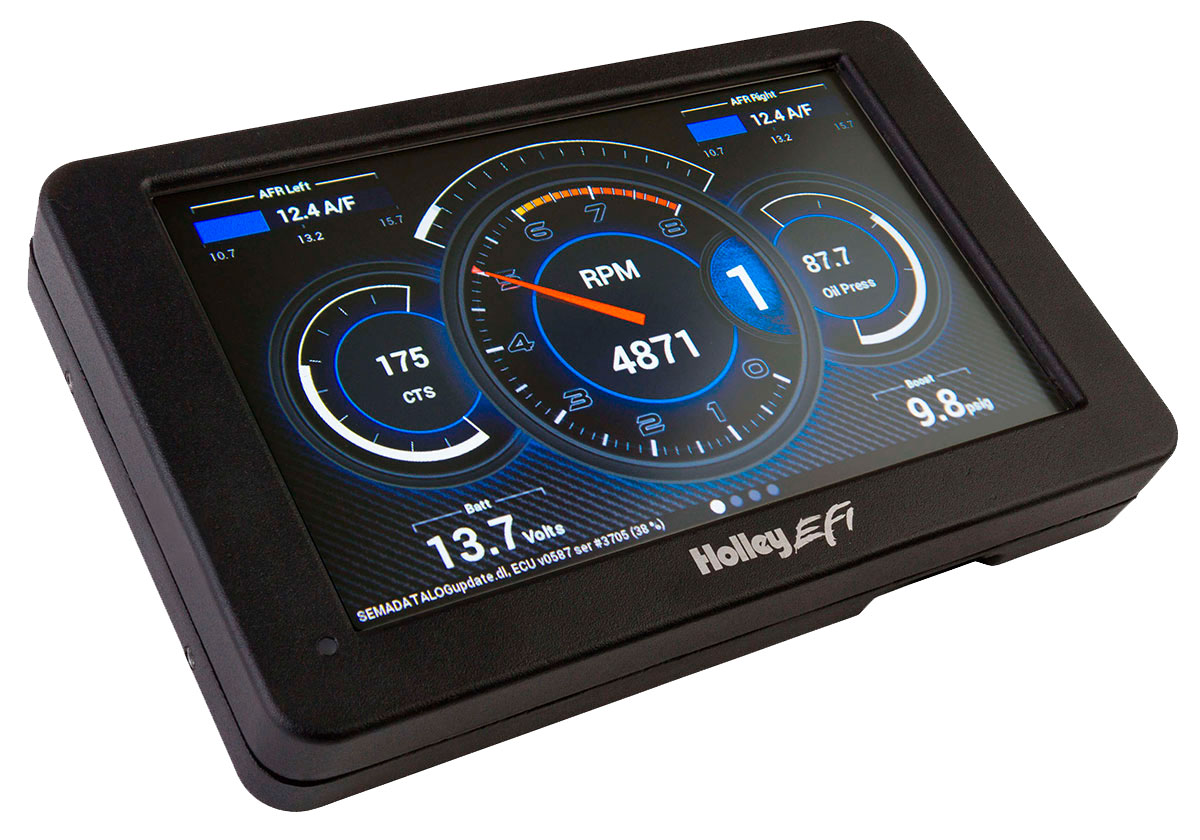

The Holley EFI Digital Dashis completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user defined alarms, configurable shift lights and can control on screen playbackof your EFI data logs. The Holley EFI Digital Dash measures 7.5″ wide, 4.625″ tall and 1″ deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7″ low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weather proof aluminium housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance!
Features:
Plug and play connection to all Holley EFI systems via CAN bus
Compact, customizable dash for use in avariety of motorsports applications
7″ low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
800×480 resolution with auto brightness
Operating voltage min 8V – 20V
Weather proof aluminium housing featuring flexible mounting options
Completely customizable display of all EFI parameters including everyuser configurable input and output available
Multiple gauge and indicator types withlimitless customization options
Quickly togglebetween multiple active screens (tune, warm-up, race, drive, etc.)
Virtual Switch Panel (replaces the need for physical switches)
User definedalarms for any input
Configurable progressive shift lights and light bar
Control and on screen playback of EFI datalogs
Download and saveHolley EFI data logs to external USB memory stick
Expandable internal storage on micro SD card
Support for future USB devices
Upgradable with future software enhancements
Optional harness available to add physical inputs and outputs tothe dash that can be used to perform multiple operations
