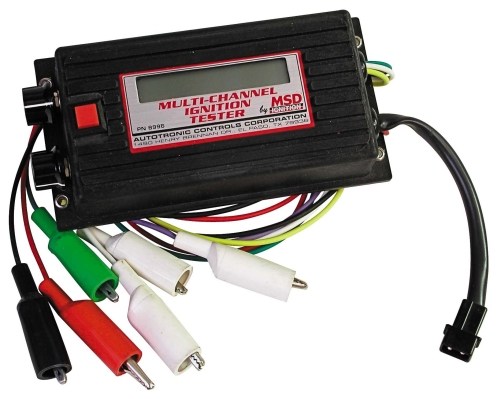

DIGITAL MULTI CHANNEL IGNITION TESTER***** SEE F4 NOTES ****

Description

• Hand held tester
  generates a trigger signal to
  fire MSD DIS, 6, 7, 8 and 10
  Series Ignition Controls and
  the coil
• LCD display
  shows the simulated RPM and
  can be used to confirm the
  operation of rev limits, rpm
  activated switches, shift
  lights and tachometers
• Triggers through breaker
  points, amplifier and
  magnetic pickup trigger
  inputs from the MSD Ignition
• Can be used on 4, 6
  and 8-cylinder engines.

This Tester can be
used with all of MSD’s CD
Ignition Controls as well as
our line of DIS multi-channel
ignitions. There are four
points-style output wires
that can be used to trigger
the four channels of the
DIS-4 Ignitions, or a single
channel can be used for
ignitions such as the MSD 7
Series. There is also a
magnetic pick-up connector
for racers using an MSD
Distributor or Flying Magnet
Crank Trigger. The Tester is
easy to connect wit h firm
terminals and matching ends
for trigger inputs. The LCD
Alphanumeric readout displays
the simulated rpm so you can
easily confirm rev limits or
the operation of an
rpm-activated switch. For use
on 4, 6 or 8-cylinder engines
with a distributor or with
coil packs.
