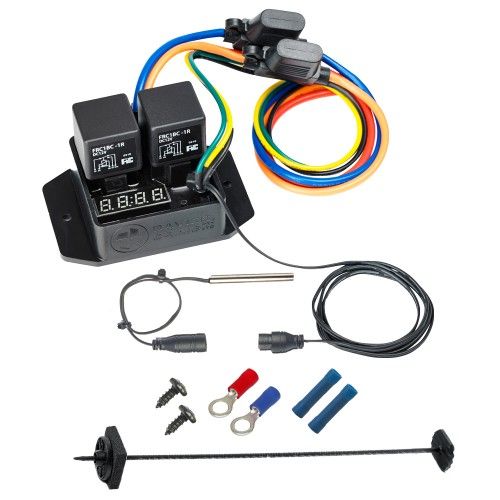

DIGITAL THERMATIC FAN SWITCH WITH RADIATOR FIN PROBE

Description

Davies, Craig Pty Ltd very own designed Digital ThermaticFan Switch Kit can be used with our Thermatic Fans, EWP’s& competitors Fans.
It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40ºC to110ºC (104ºF to 230ºF).
The TemperatureSensor is placed in the radiator fin section as close to the hot coolant inlet as possible, no need to cut hoses.
This switch is operated thermally & also whenthe air conditioning is in operation.
Simply set the temperature by pressing the set button.
It can run 1 or two fans. The second fan (if applicable) will start10 seconds after Fan #1 runs.
The fans will operate until the air temperature is reduced by 1 degrees (C) from the set temperature.
To convert temperature reading from Centigrade to Fahrenheit, simply remove the plastic cover from the Jumper Pins by hand located below the LED screen.
SPECIFICATION
Max voltage:
15V
Max current:
50A
Relay setup:
Dual relay
Speed:
Single speed – 10 sec. delay to start up the second fan
Applications:
Suitable for single and dual fan applications
Temperature Display:
LED digital temp display –actual temp + set temp
Temp Display:
Centigrade+ Fahrenheit
Temp settings:
40°cto 110°c (104°F to 230°F)
Tempsetting:
Push Button
Circuittype:
Pre-programmed micro controller
Output wires:
Batt + Batt – IGN, AC Clutch, Fan #1,Fan #2 Thermistor Probe
Dimensions:
95x65x56 mm
