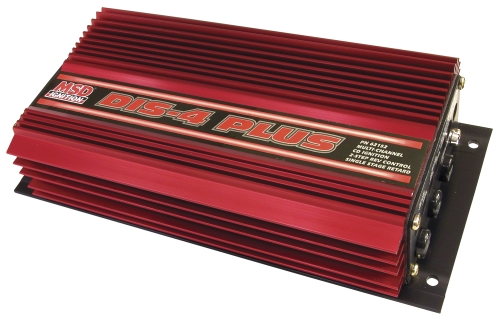

DIS-4 PLUS IGNITION CONTROL

Description

• Features are now
  adjustable with rotary
  switches.
• Step
  Retard.
• Two Step Rev
  Control.
• LED
  Monitor.

MSD DIS
Ignition Controls are
designed for engines with
coil pack, waste spark
ignition systems. The DIS-4
has four channels, to fire up
to four coil packs (or even
four individual coils). Each
Control delivers full power
Capacitive Discharge sparks
from idle through racing rpm.
Below 3,000 rpm there is a
series of multiple sparks
that last for up to 20
degrees of crankshaft
rotation to improve idle,
starting and throttle
response. The adjustable
features of the DIS Ignitions
have also been upgraded with
rotary dials. These provide
easier, and more precise
adjustments of the over rev
limiter and the holeshot rev
limit. Also, there is now a
step retard that can be wired
directly to a nitrous system
or switch for activation!

Operating S

Spark Energy
: 105 – 115
millijoules/Spark

Primary Voltage: 460
– 480 Volts

Secondary Voltage:
40,000 Volts

Spark Series Duration
: 20 degrees Crankshaft
Rotation
RPM
Range: 14,000 RPM
with 14.4 Volts

Voltage Required: 10
– 18 Volts, Negative Ground

Current Draw
DIS-4: 6.6 Amps at
10,000 RPM
Weight
and Size: 4.5 lbs.,
9.5″L x 4.5″W x 2.2″H
